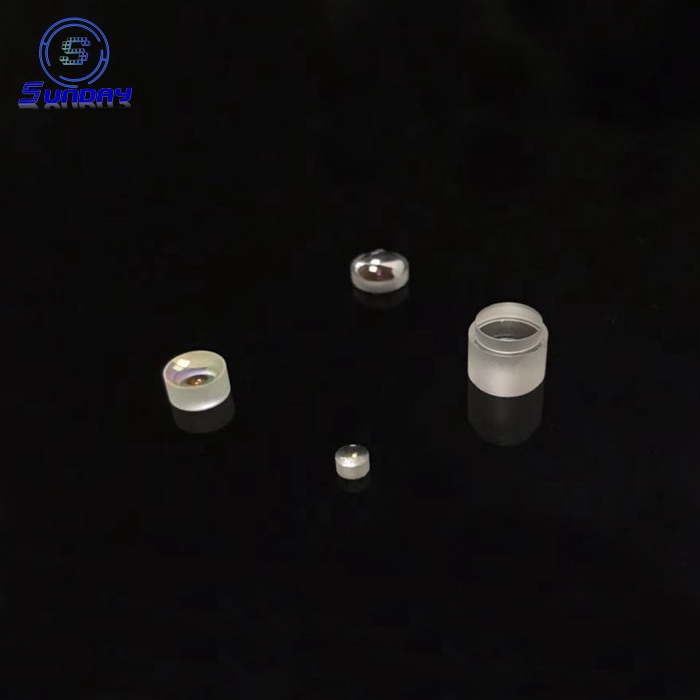

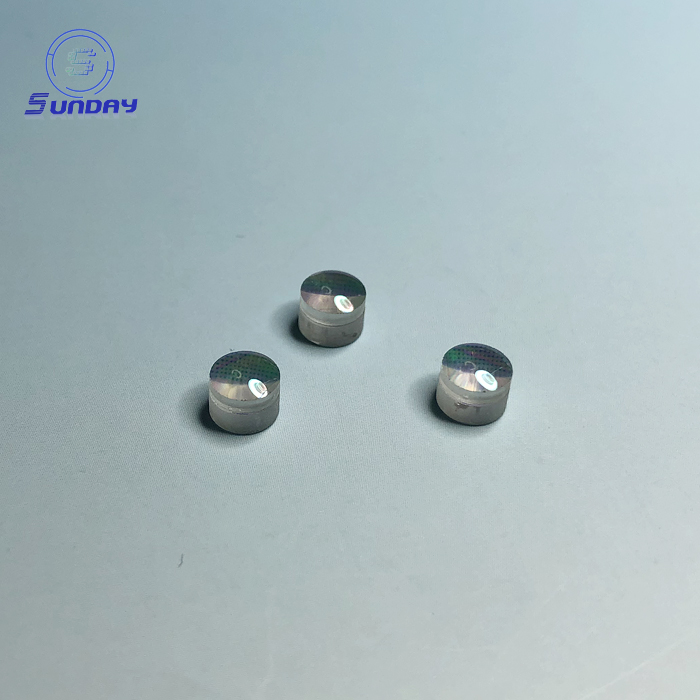

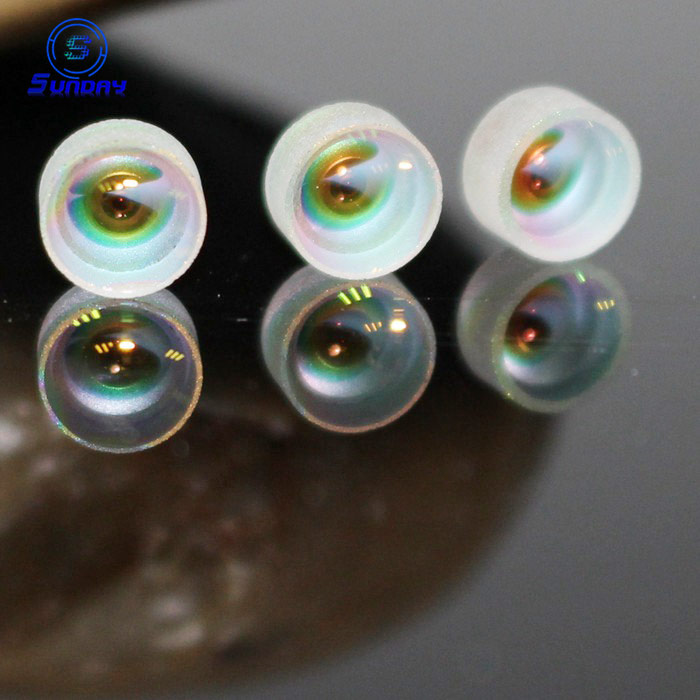

Micro Lens

Sunday Optics manufacture Micro lens, the minimum diameter is 0.1mm from optical glass substrate.

Product Details

Sunday Optics has the ability to manufacture micro (small diameter and Small R), these lenses mainly used for endoscope and medical equipment. the structure are plano convex lens, plano concave lens, mensicus lens, bi convex lens, bi concave lens, achromatic lenses,Diameter can be 0.1mm.


Specifications:

StructureMicro lens
MaterialOptical glass, UVFS, Germanium, Silicon, CaF2, MgF2, ZnSe ZnS, Sapphire
Diameters Available0.1mm available
Diameter Tolerance+0.00/-0.01mm or customer design
Surface Quality10-5
Surface Irregularityλ/10 @632.8nm or customer design
Thickness tolerance+0/-0.02mm
Clear Aperture>90% of Diameter or full CA
Chamfer0.05-0.5mmx45degree, according to customer's needs.
Centeration30 arcsec
CoatingSingle Mag2, Multiple Layers AR Coating
A: 350-650nm
B: 650-1050nm

C: 1050-1585nm

D: 3-5um  2-14um

E: Customer Design
TAGS: small size optical glass lens, micro size lens, bk7 lens, k9 glass lens, micro lens manufacture, micro plano convex lens, micro mensicus lens, optical glass lens, optical lens manufacture for endoscope, glass lens supplier optics
