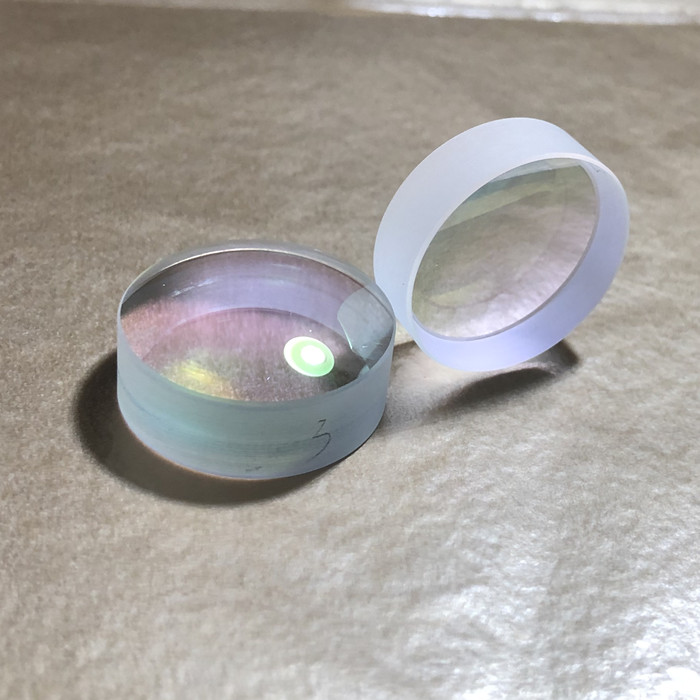

JGS1 Plano Convex Lens

Plano-convex lenses are used to collimate diverging light or to focus collimated light.

Product Details

A plano-convex lens is a positive focal length lens with a plane on one side and a convex on the other. It is used to concentrate parallel light, or convert point light sources into parallel light. Widely used in telescope, microscope, sight, laser, optical fiber and other products.UV-fused Silica (JGS1) has high transmissivity from the UV to the near-infrared (185-2100nm) and high transmissivity in the deep UV region. In addition, compared with H-K9L (N-BK7), it has better uniformity and lower thermal expansion coefficient, especially suitable for high power laser applications in the ULTRAVIOLET to near infrared band.

Sunday Optical Plano convex lens diameter range from 0.35mm to 600mm, Material can be optical glass, Quartz, Sapphire, CaF2, MgF2, Infrared glass such as ZnSe, CaF2, Ge, Si.

Plano Convex Lens

StructurePlano convex lens
MaterialOptical glass, UVFS, Germanium, Silicon, CaF2, MgF2, ZnSe ZnS, Sapphire
Diameters Available0.35mm to 600mm
Diameter Tolerance+0.00/-0.02mm or customer design
Surface Quality10-5
Surface Irregularityλ/10 @632.8nm or customer design
Thickness tolerance+0/-0.02mm
Clear Aperture>90% of Diameter
Chamfer0.05-0.5mmx45degree, according to customer's needs.
Centeration30 arcsec
CoatingSingle Mag2, Multiple Layers AR Coating
A: 350-650nm
B: 650-1050nm
C: 1050-1585nm
D: Customer Design
