Optical Mirror
Sunday Optics is a professional optical mirror manufacturer providing custom optical mirrors for laser systems, imaging equipment, spectroscopy, machine vision, medical instruments and OEM optical assemblies. As part of our broader precision optical components range, these mirrors can be customized according to the required wavelength, angle of incidence, polarization, substrate, dimensions, surface quality and reflective coating.
Our precision optical mirrors are available in dielectric, metal-coated, spherical and center-hole configurations. Sunday Optics combines optical processing, polishing, coating, inspection and assembly capabilities to support sample development and repeat production.
Sunday Optics supplies multiple types of precision optical mirrors for laser, imaging, spectroscopy and OEM optical systems. Compare the coating, optical function and required customization parameters below to select the appropriate custom optical mirror.
| Mirror Type | Structure and Optical Performance |
|---|---|

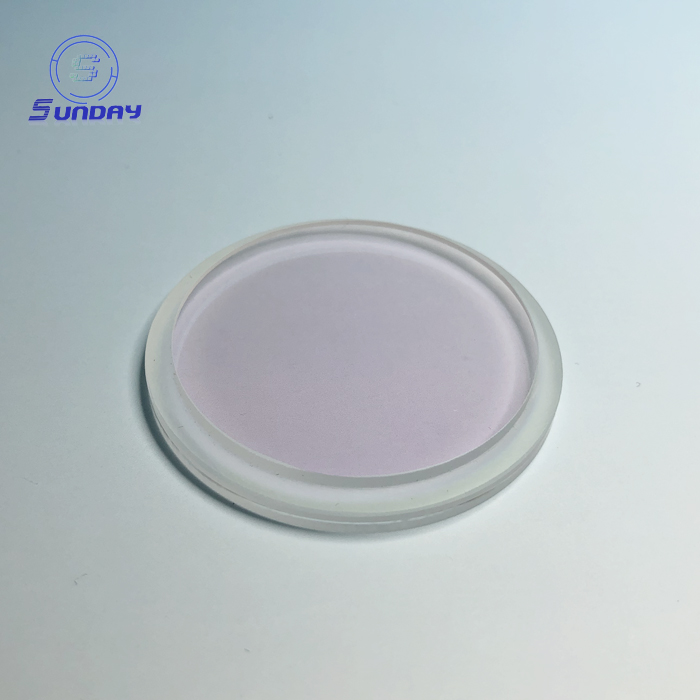

| Dielectric Mirrors | Multilayer dielectric coatings provide high reflectivity over a specified wavelength or wavelength range. Laser-line and broadband coating designs are available. |

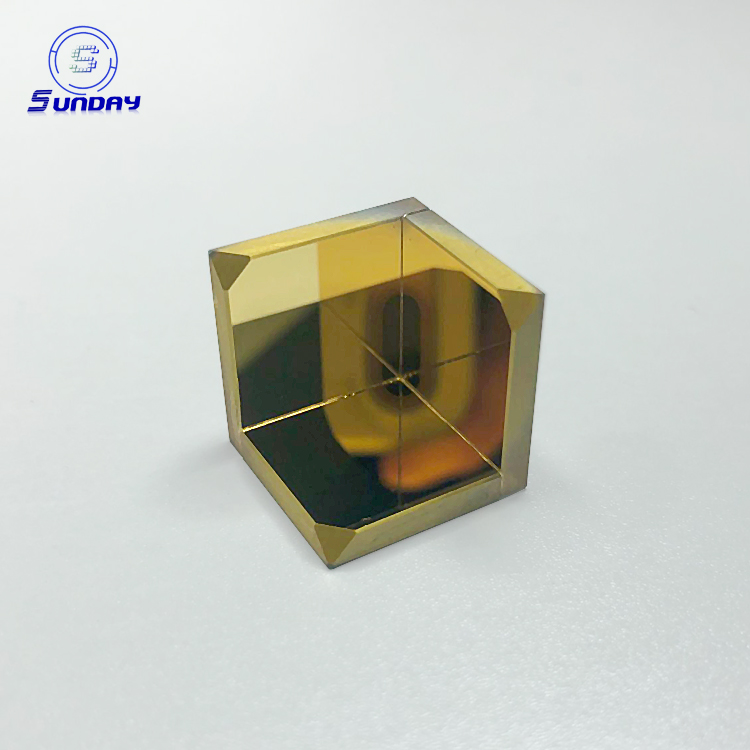

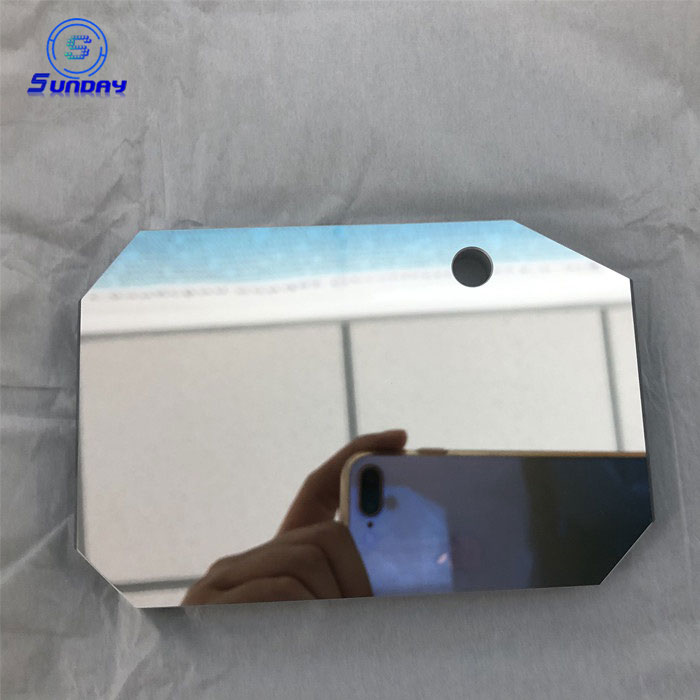

| Metal-Coated Mirrors | First-surface optical mirrors with aluminum, silver or gold coatings provide broadband reflection across selected UV, visible, NIR or IR ranges. Protective overcoats can improve durability. |

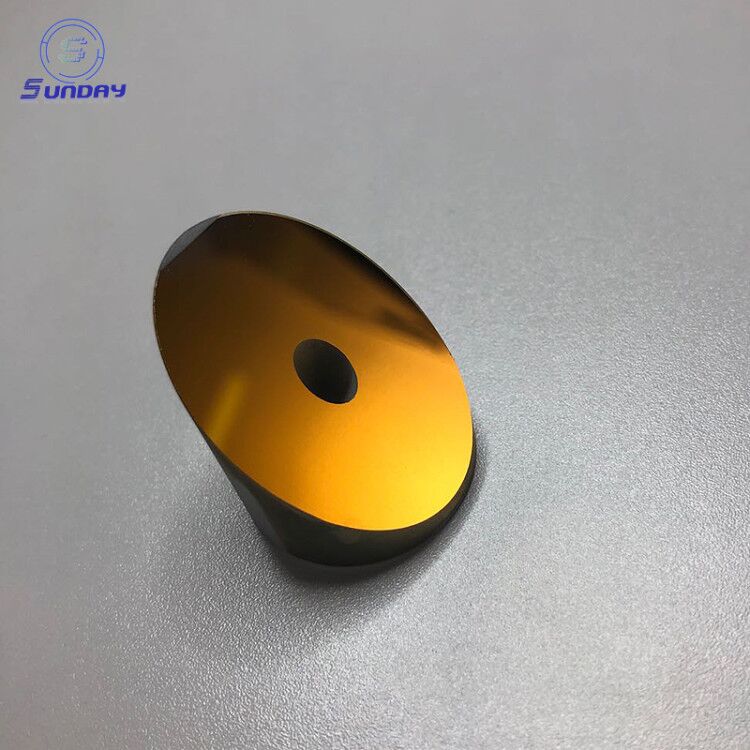

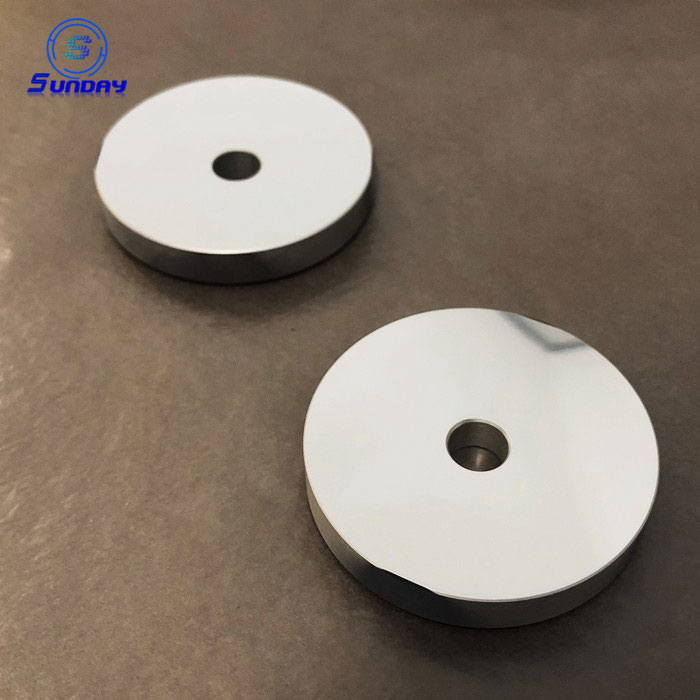

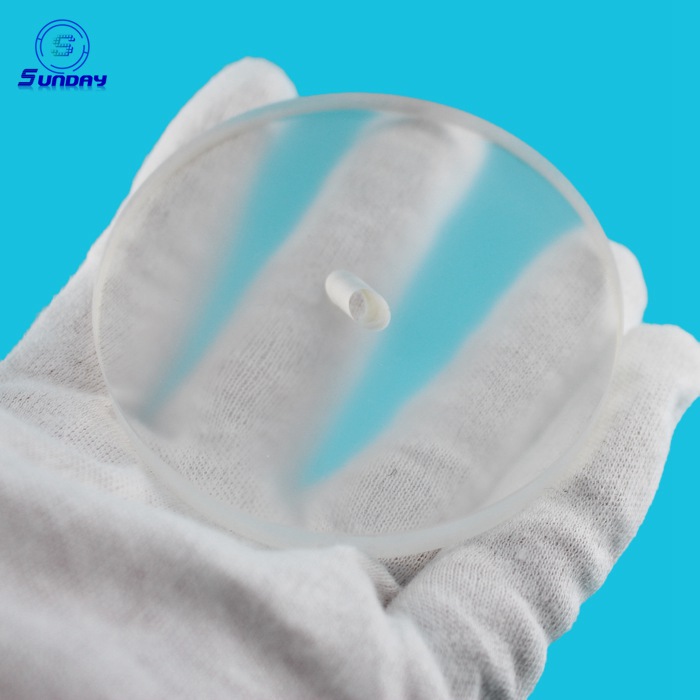

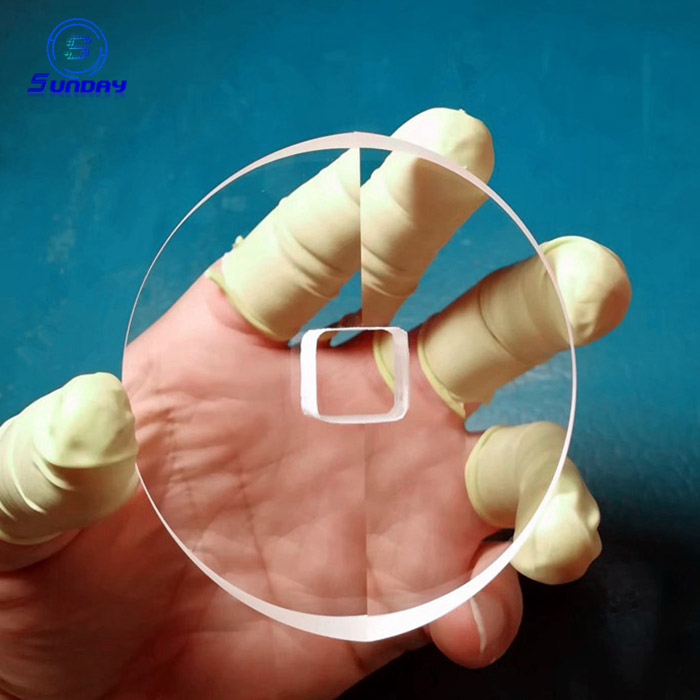

| Mirrors with Holes | Custom optical mirrors with a center hole provide a clear path for coaxial illumination, beam delivery or mechanical integration. Hole dimensions and edge treatment can be manufactured according to drawings. |

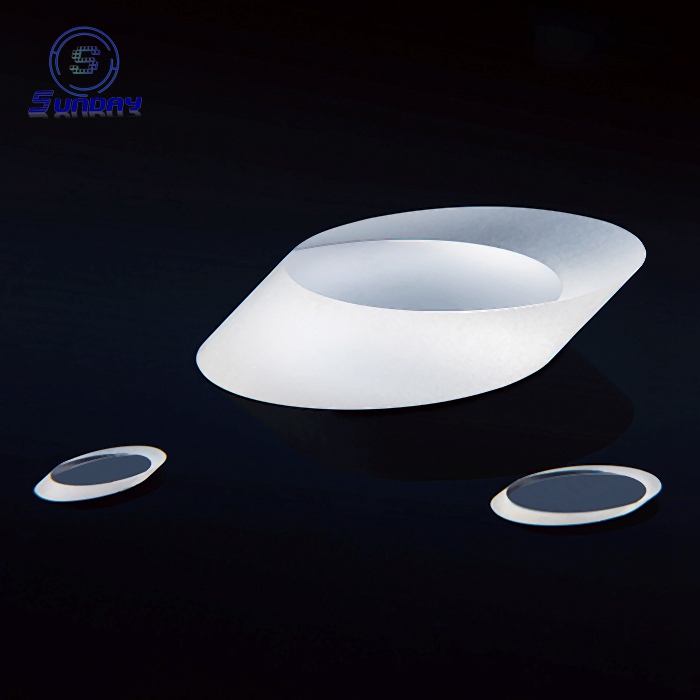

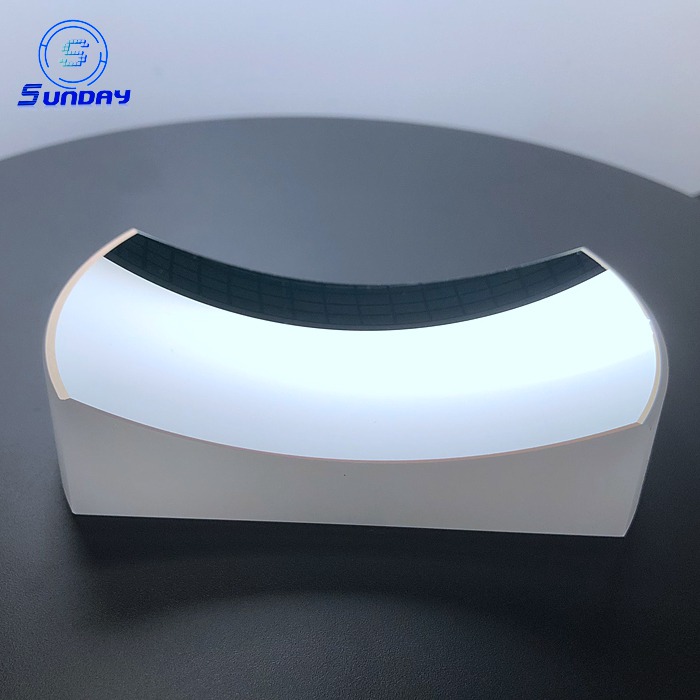

| Spherical Mirrors | Concave or convex reflective surfaces are used to converge, diverge or redirect light. Geometry and coating can be customized for the required optical performance. |
The following values represent current standard or typical manufacturing capabilities. Final specifications should be confirmed according to the mirror material, geometry, clear aperture and coating design.
| Parameter | Available Options |
|---|---|
| Mirror Types | Dielectric, metal-coated, spherical and mirrors with holes |

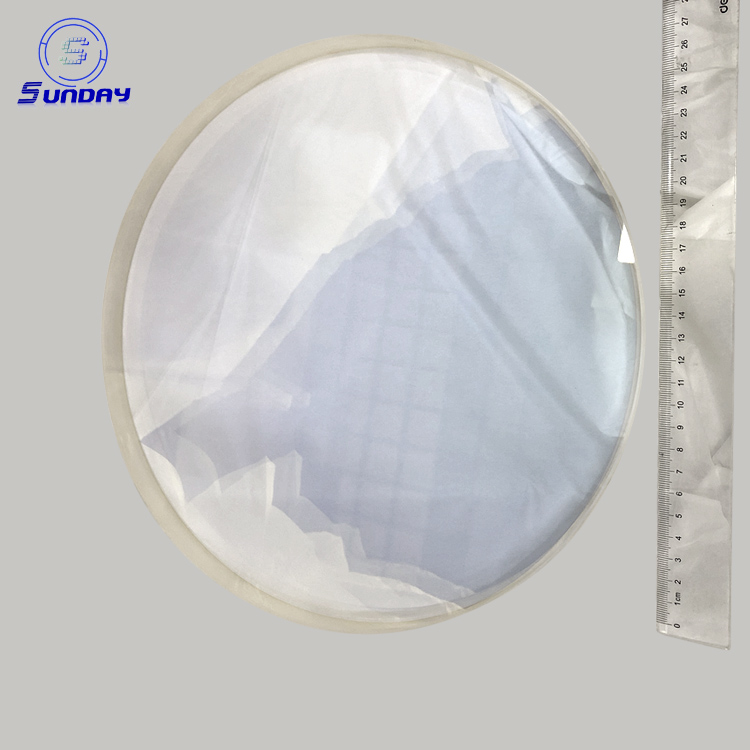

| Diameter | 2 mm to 400 mm |
| Diameter Tolerance | Typically ±0.1 mm; special tolerances reviewed according to drawing |
| Shapes | Round, square, rectangular and custom shapes |
| Substrates | N-BK7, fused silica, sapphire, CaF₂, silicon and germanium |
| Surface Quality | 40-20 scratch-dig standard |
| Surface Form | λ/4 flatness for applicable flat mirrors; custom surface accuracy available upon review |
| Coatings | Dielectric HR, aluminum, silver, gold and protective metal coatings |
| Reflectivity | Coating-dependent; up to 99.9% for qualified dielectric coating designs |
| Edge Treatment | Standard or custom chamfers and bevels |
| Inspection | Dimensional, surface-form and spectral inspection according to agreed requirements |
◆ Laser systems: Beam steering, beam folding, resonators, alignment and beam delivery.
◆ Machine vision: Optical path control for imaging, measurement and industrial inspection.
◆ Spectroscopy and interferometry: Controlled spectral response and accurate reflected wavefront.
◆ Medical instruments: Imaging, diagnostic and analytical optical equipment.
◆ Illumination systems: Light collection, focusing and redirection.
◆ Aerospace and remote sensing: Custom substrates and coatings selected for thermal and environmental conditions.
◆ OEM optical assemblies: Custom sizes, holes, edges and mounting features for system integration.
Sunday Optics integrates cutting, grinding, polishing, coating and optical assembly into one production workflow. This helps coordinate substrate processing, surface specifications, coating performance and final assembly requirements.
Our metrology resources include three Zygo interferometers and two spectrophotometers for surface and spectral evaluation. Customers can define the required dimensional inspection, surface-form testing, coating measurement, sampling plan and acceptance criteria before production.
