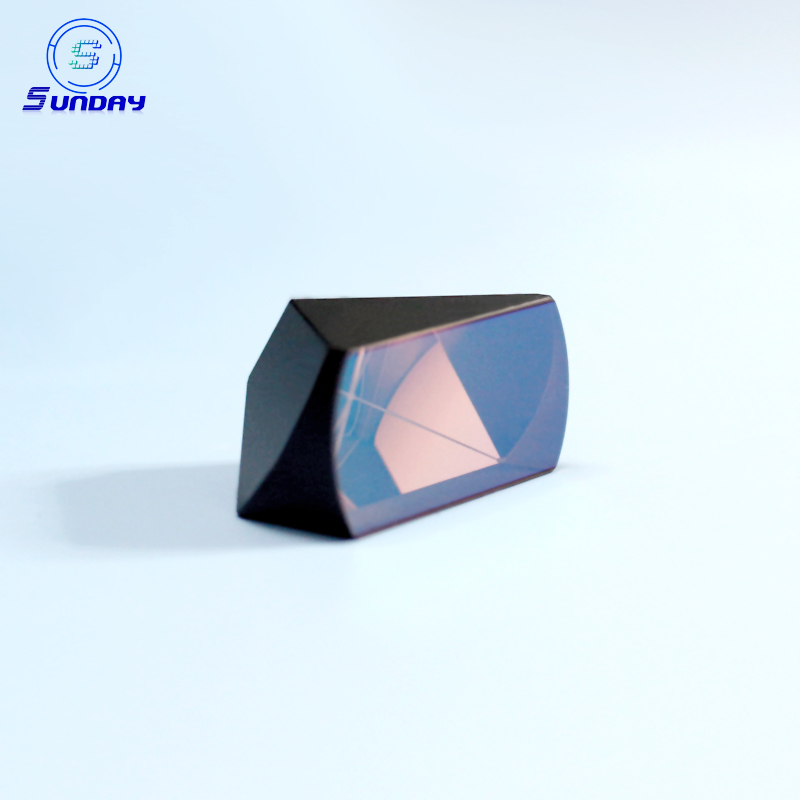

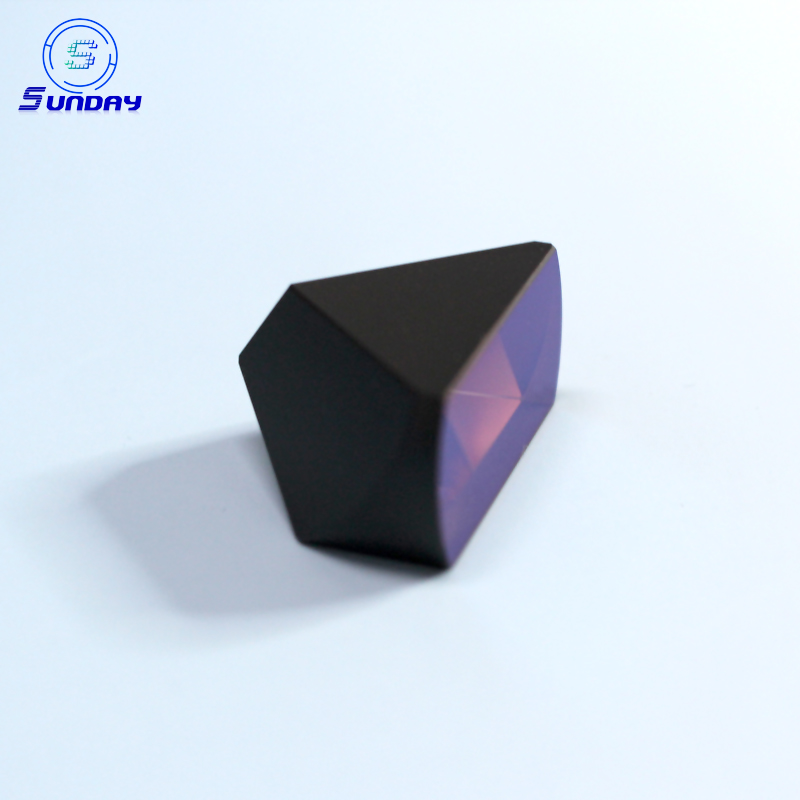

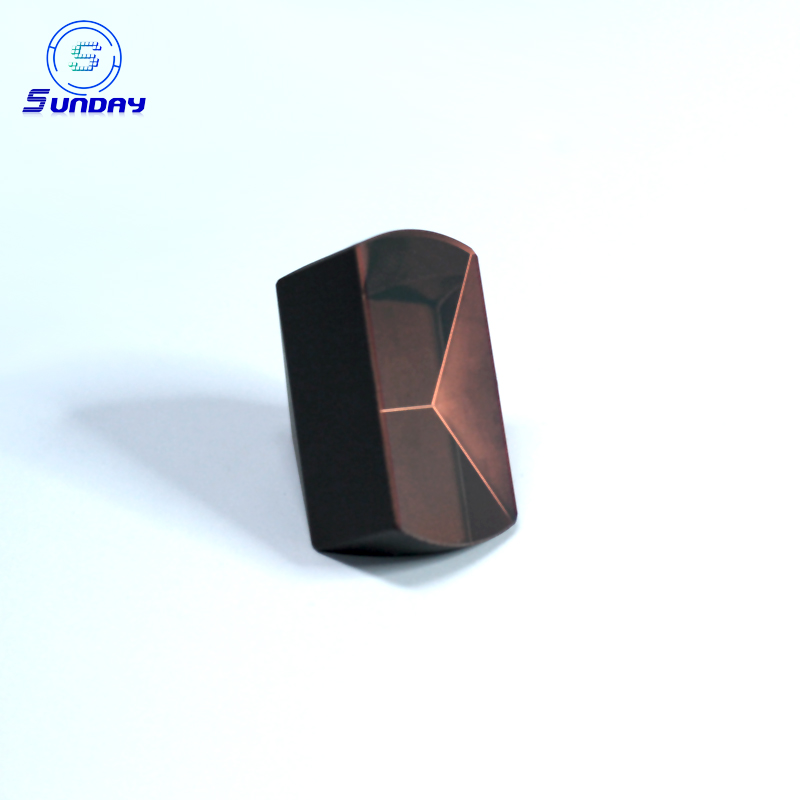

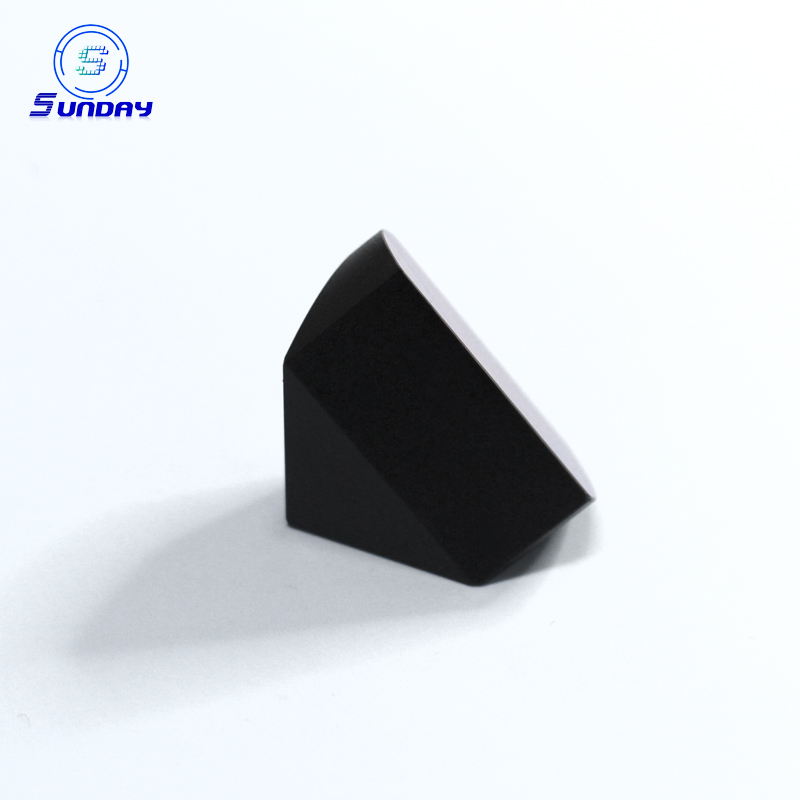

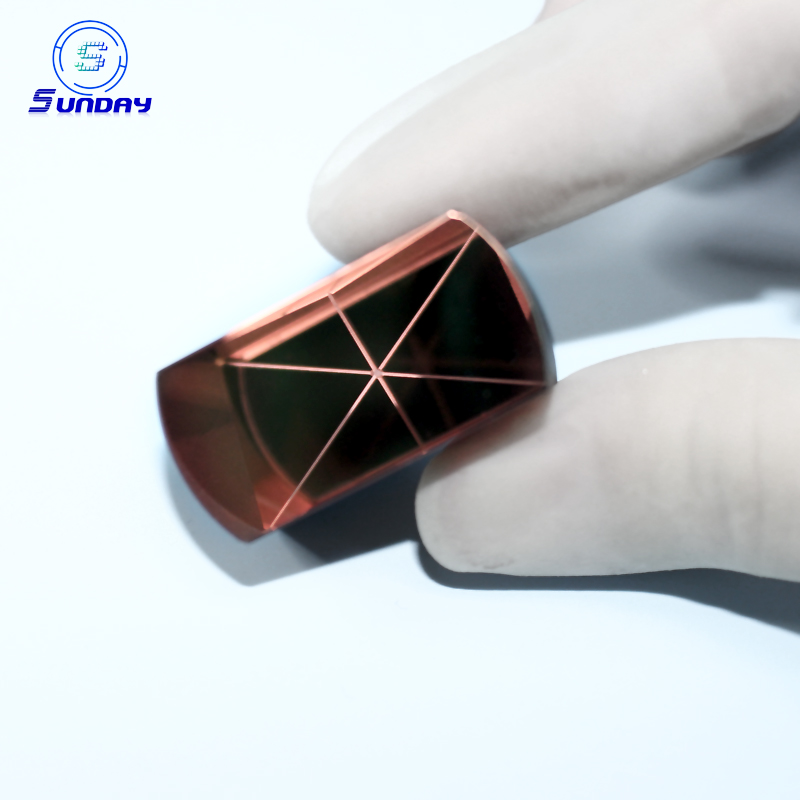

Sunday Optics manufacture Right Triangular Angle Prism according to customer size and drawing.
Product Details
Sunday Optics manufactures Right Triangular Angle Prism according to customer size and drawing。
Material:H-K9L
Size:5-100mm
Tolerance:-0.05mm
Surface Quality:20-10
Angle Tolerance<1 arcmin
Coating: Copper+Blank Paint.
Specifications
| Material | BK7, UV Fused Silica, Sapphire, ZnSe, Caf2, Si, Ge, etc. |
| Size | 3mm-380mm |
| Size tolerance | +/-0.02mm or customer request |
| Clear Aperture | >90% |
| S/D | 60-40 40-20 20/10 10/5 |
| Flatness | 1/10lambda at 632.80nm |
| Chamfer | 0.25mmx45° |
| Angle tolerance | <2'', <3'', <30'', <1', <3' |
| Coating | AR, HR, Aluminum, Silver or customer request. |
