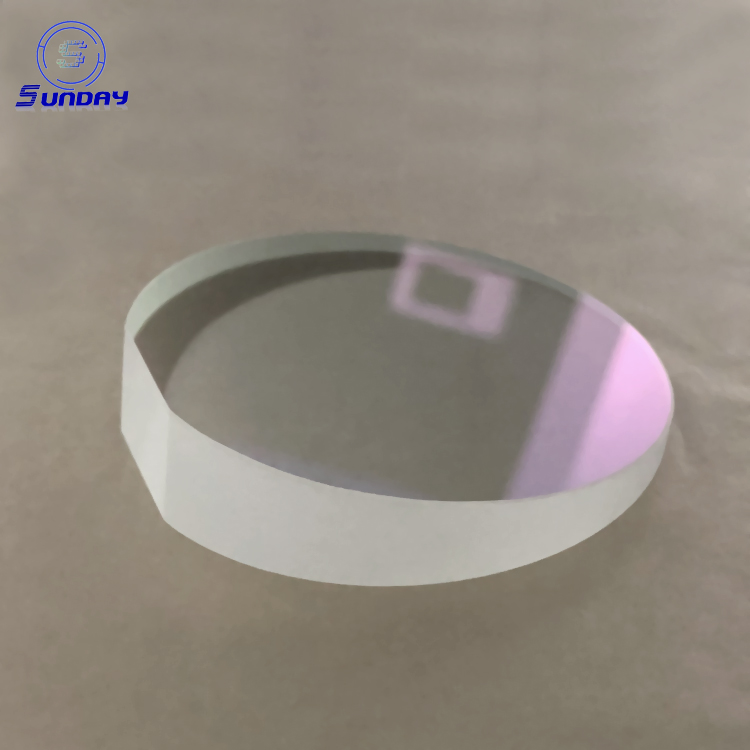

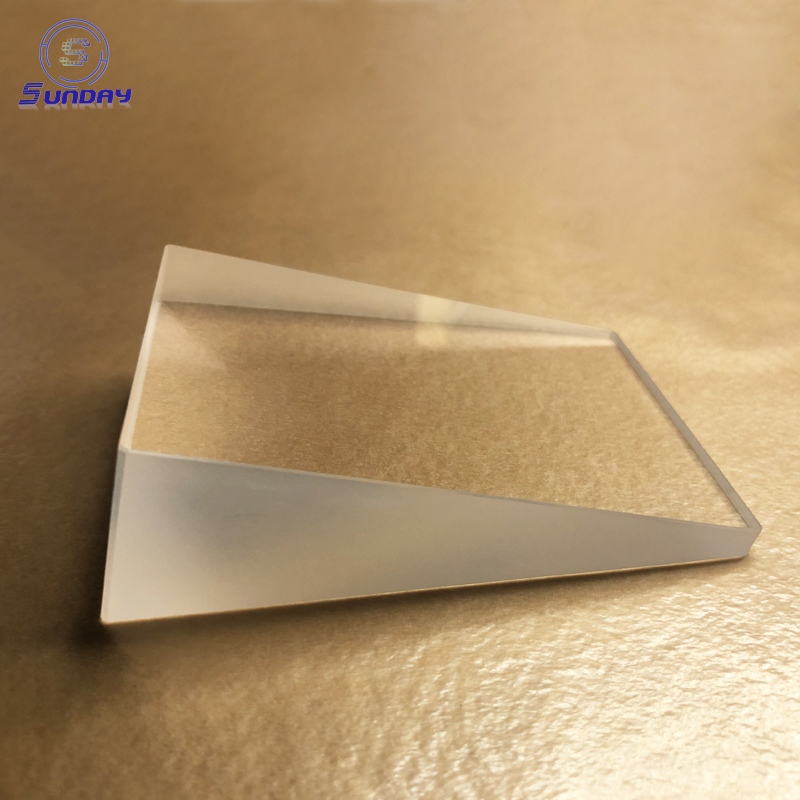

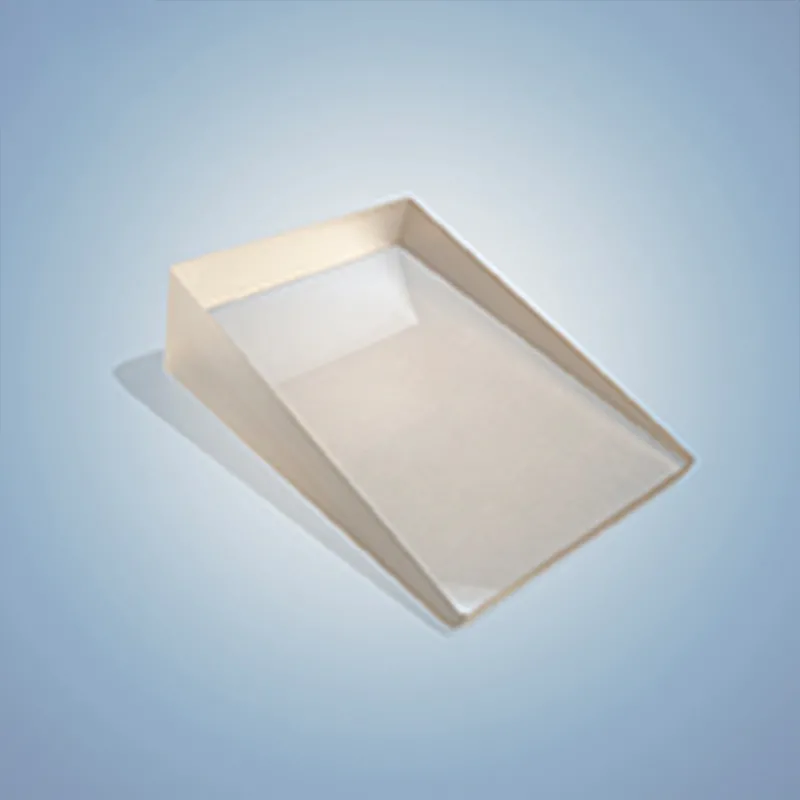

Wedge Prism

Wedge prism has plane inclined surfaces. It deflects light toward its thicker portion. It can be used individually to deflect a beam to a special angle. Two wedge prisms work together can assembly an anamorphic prism to correct the elliptical shape of laser beam.

Product Details

Wedge prism has plane inclined surfaces. It deflects light toward its thicker portion. It can be used individually to deflect a beam to a special angle. Two wedge prisms work together can assembly an anamorphic prism to correct the elliptical shape of laser beam. The wedge prism is ideal for laser beam steering applications. By combining two wedge prisms which can be rotate individually, we can direct the input beam to anywhere within the cone angle θd, where θd is 4x the specified angular deviation of one wedge

Wedge Prism

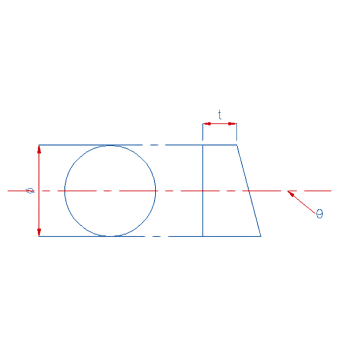

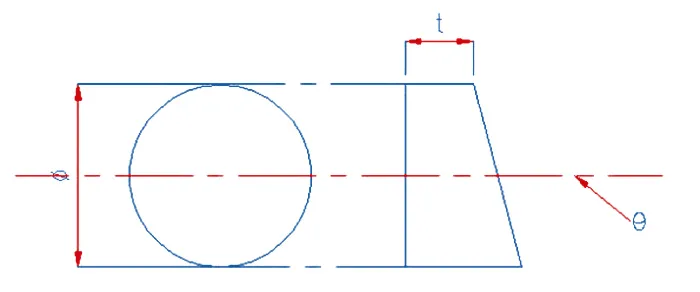

Specifications

MaterialBK7, UV Fused Silica, or customer request.
Size1mm-600mm
Size tolerance+/-0.02mm or customer request
Clear Aperture>90%
S/D60-40 40-20 20/10 10/5
Flatness1/10lambda at 632.80nm
Chamfer0.25mmx45°
Wedge Angle tolerance<2'', <3'', <30'', <1', <3'
CoatingCustomer request.
