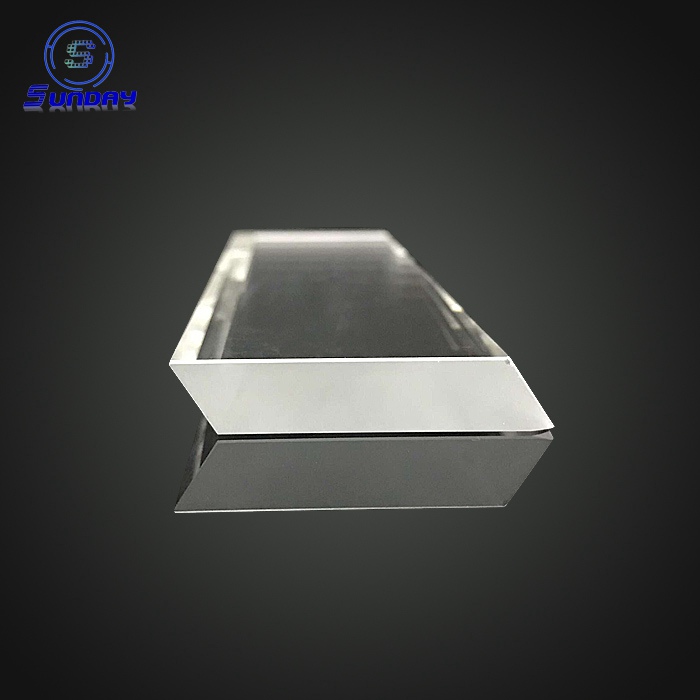

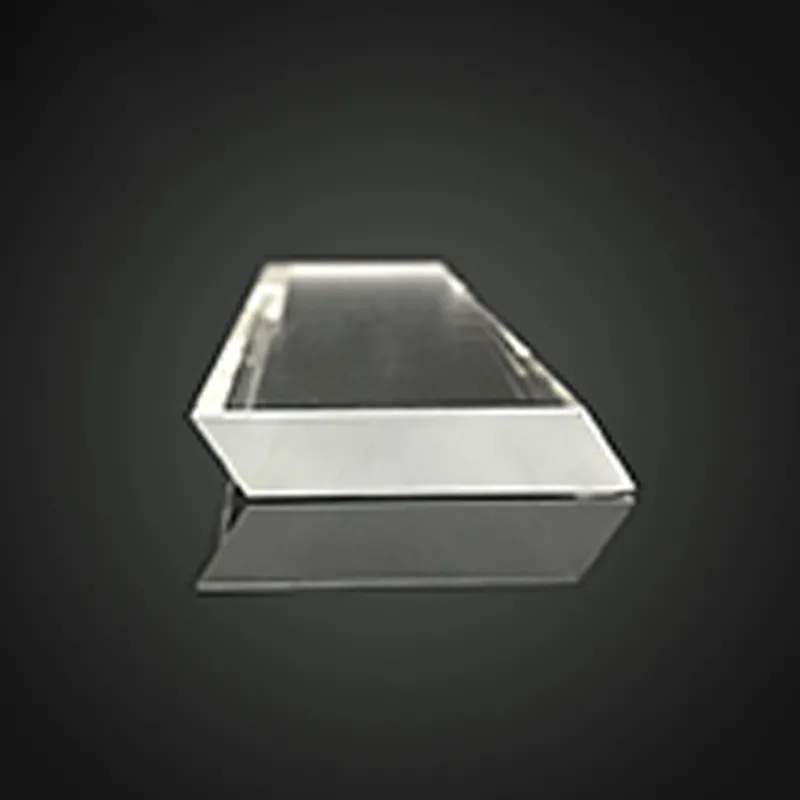

Rhombic Prism

A ritalic prism can produce a lateral displacement of light, but does not change its direction of propagation. Rhombic prism is widely used in stereoscopic microscope, periscope and other instruments


Product Details

A ritalic prism can produce a lateral displacement of light, but does not change its direction of propagation. Rhombic prism is widely used in stereoscopic microscope, periscope and other instruments

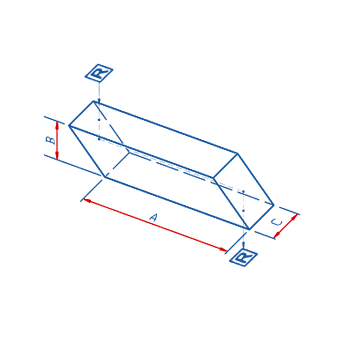

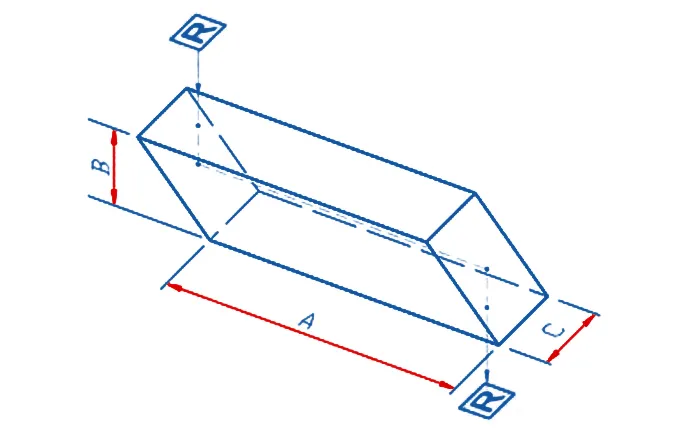

Rhombic Prism

Specifications

MaterialBK7, UV Fused Silica, Sapphire, ZnSe, Caf2, Si, Ge, etc.
Size3mm-380mm
Size tolerance+/-0.02mm or customer request
Clear Aperture>90%
S/D60-40 40-20 20/10 10/5
Flatness1/10lambda at 632.80nm
Chamfer0.25mmx45°
Angle tolerance<2’’,<3’’,<30’’,<1’,<3’
CoatingAR, HR, Aluminum, Silver or customer request.
TAGS: rhombic prism, bk7 rhombic glass prism, fused silica prisms stock, changchun prisms manufacture, prisms factory, glass prism supplier, high precison prisms, optical lens prisms , polish prisms
