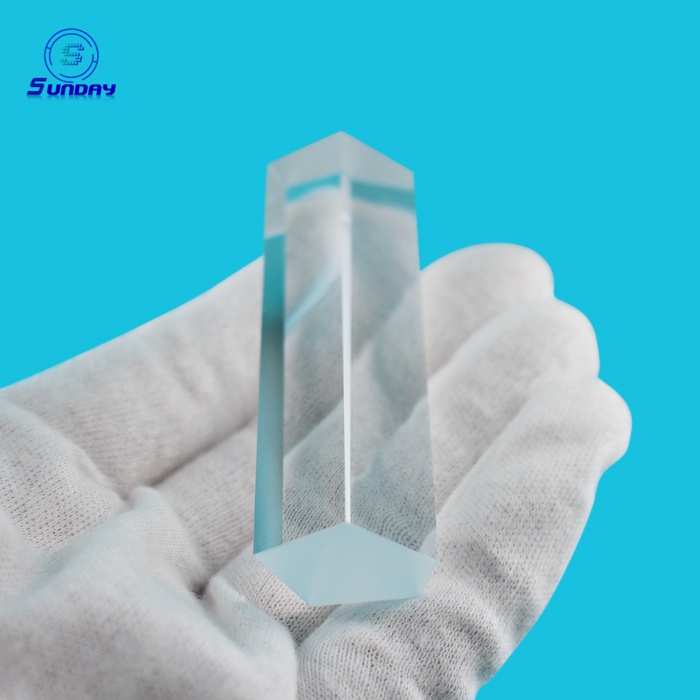

Penta Angle Prism

Penta Angle Prism are widely used in laser level, Image system, precision system, and optical area. For penta prism, the deviation angle of 90° is independent of the orientation of the prism, thus it is particularly important and wide in application which the prism orientation cannot be precisely controlled, we can produce high precision penta angle prism,and make coating according to customer's request.

Product Details

Penta Angle Prism are widely used in laser level, Image system, precision system, and optical area. For penta prism, the deviation angle of 90° is independent of the orientation of the prism, thus it is particularly important and wide in application which the prism orientation cannot be precisely controlled, we can produce high precision penta angle prism,and make coating according to customer's request.

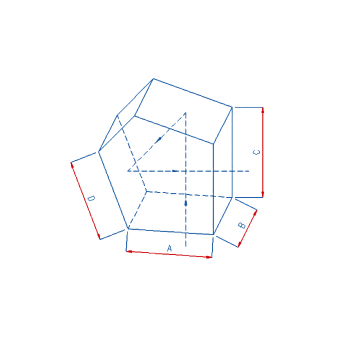

Penta Angle Prism

Specifications

MaterialBK7, UV Fused Silica,Sapphire, ZnSe,Caf2,Si,Ge,etc.
Size3mm-380mm
Size tolerance+/-0.02mm or customer request
Clear Aperture>90%
S/D60-40 40-20 20/10 10/5
Flatness1/10lambda at 632.80nm
Chamfer0.25mmx45°
Angle tolerance<2'',<3'',<30'',<1',<3'
CoatingAR, HR, Aluminum, Silver or customer request.
