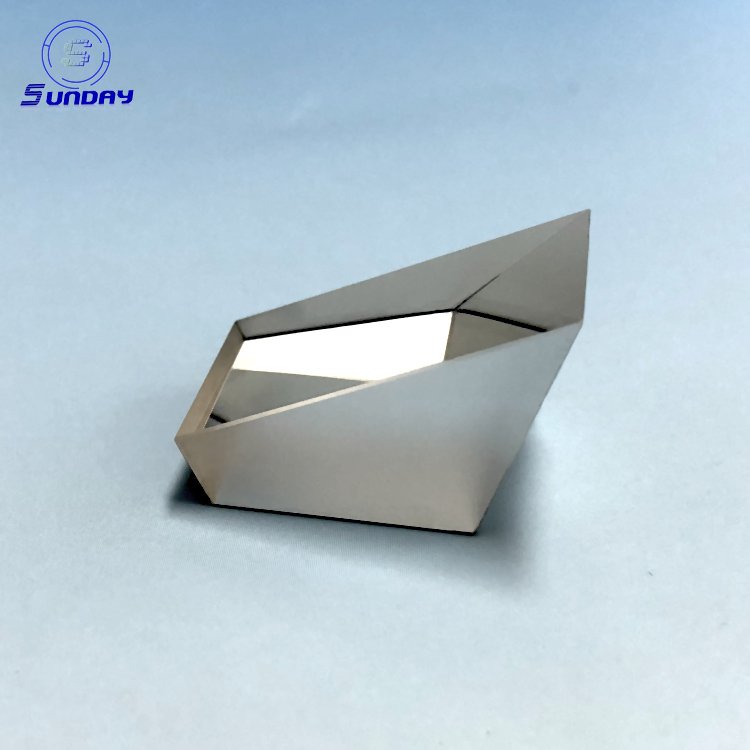

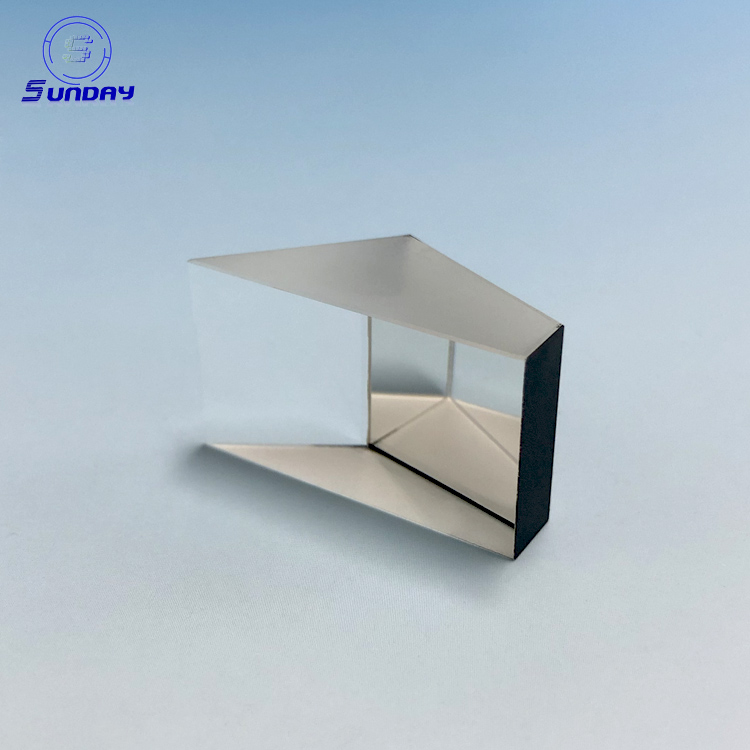

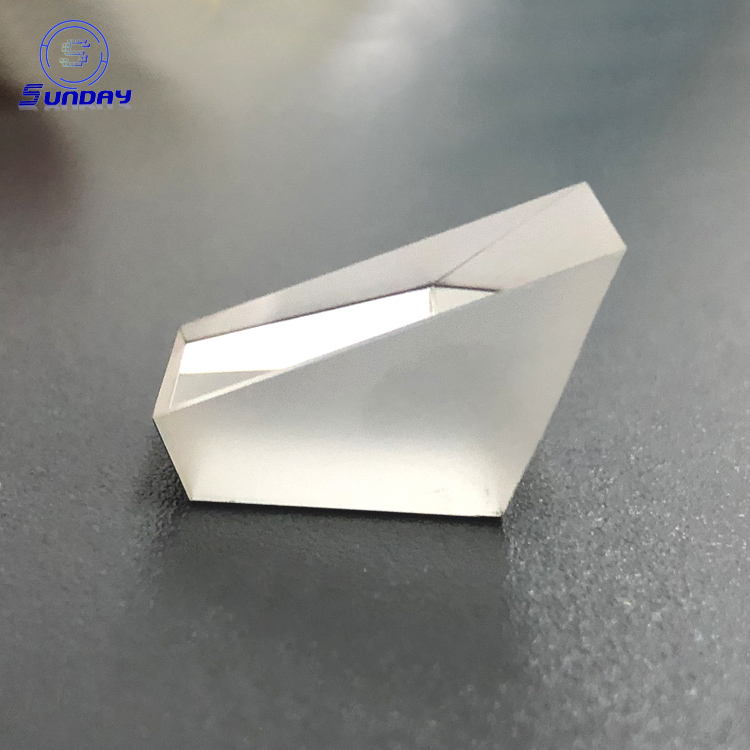

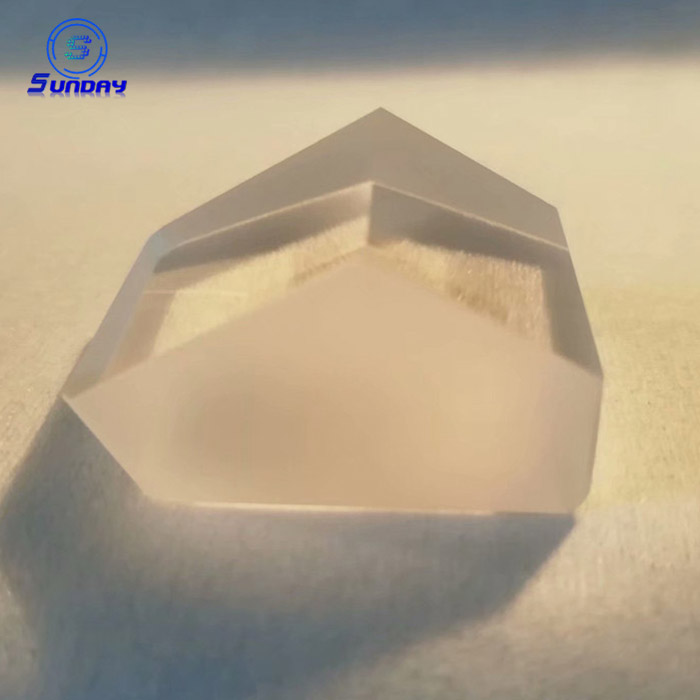

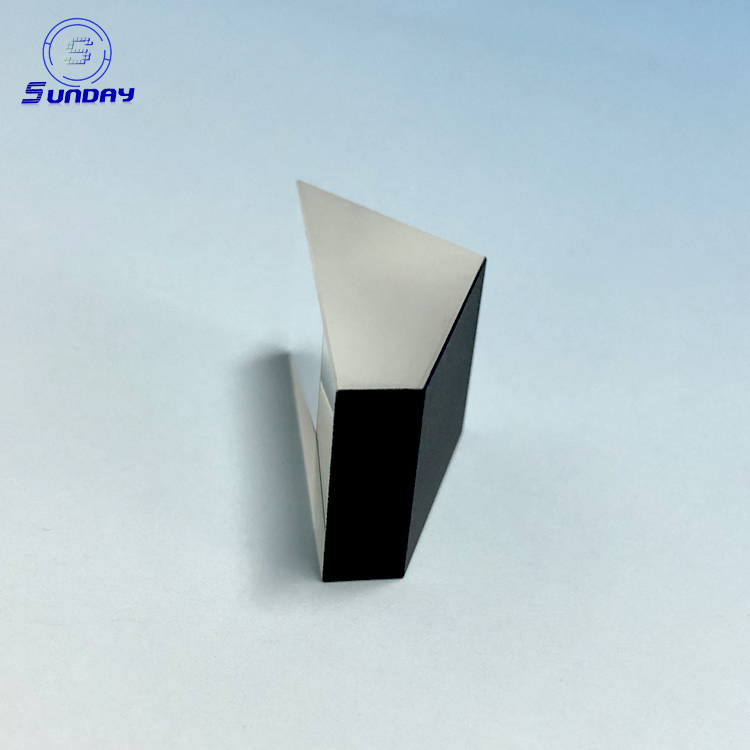

Half Penta Angle Prism

Sunday Optics manufacture half penta angle prisms according to customer size and drawing.

Product Details

Sunday Optics manufacture half penta angle prisms according to customer size and drawing。

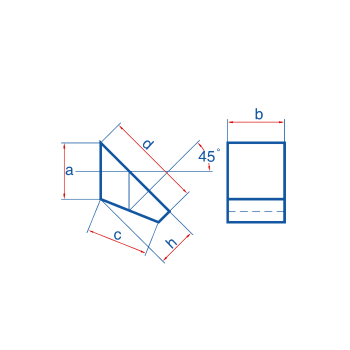

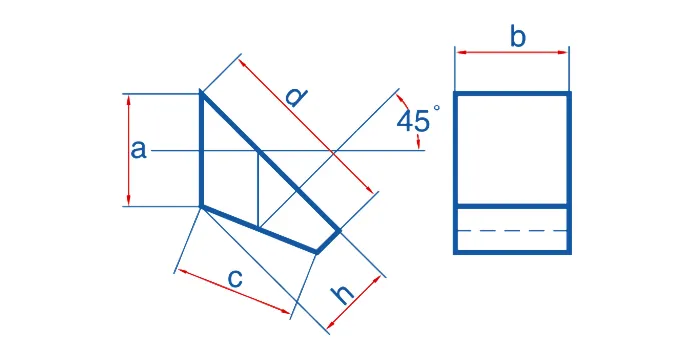

The half penta prism makes the beam turn 45°, generally Aluminum coatied and black paint protection。

Material:H-K9L

Size:5-100mm

Tolerance:-0.05mm

Surface Quality:20-10

Angle Tolerance<1 arcmin

Coating: Aluminum+Blank Paint.

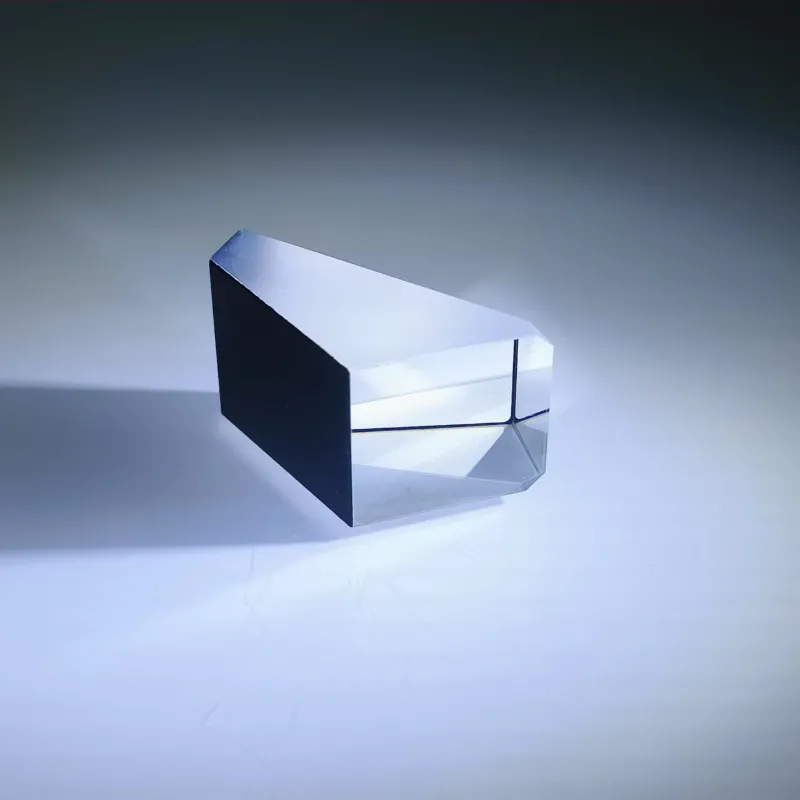

Half Penta Angle Prism















Specifications

MaterialBK7, UV Fused Silica, Sapphire, ZnSe, Caf2, Si, Ge, etc.
Size3mm-380mm
Size tolerance+/-0.02mm or customer request
Clear Aperture>90%
S/D60-40 40-20 20/10 10/5
Flatness1/10lambda at 632.80nm
Chamfer0.25mmx45°
Angle tolerance<2'', <3'', <30'', <1', <3'
CoatingAR, HR, Aluminum, Silver or customer request.
TAGS: half penta angle prism, Half Pentagonal Prism, k9 prisms, optical glass k9 prism, bk7 glass prisms, glass prisms manufacture, optical k9 prisms, optics supplier
