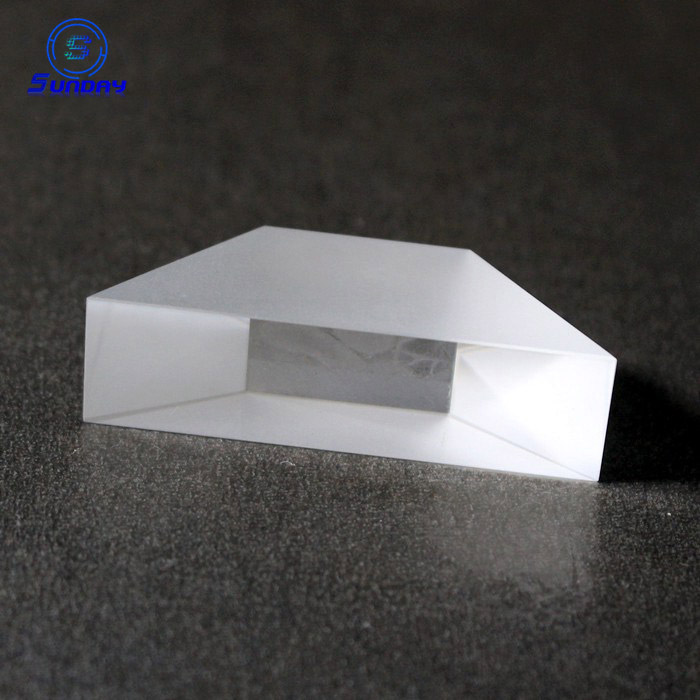

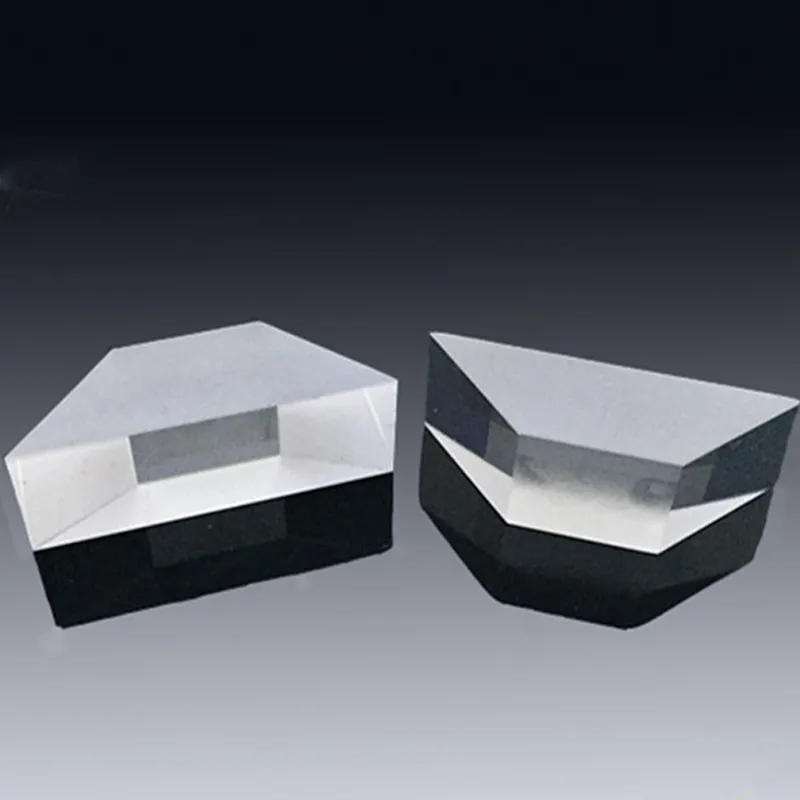

Dove Prism

A dove prism is ideal for image rotation.Dove Prism has two applications. One is creating an image inversion in a beam input parallel to the base. Another application is used as a retroreflector. For this application it perform as a right-angle prism.

Product Details

Dove prism is a kind of reflection prism used for image reflection.Dove prisms are formed by truncated rectangular prisms.A beam of light enters one of the slanted faces of the prism, fully reflects from inside the longest (bottom) face, and then exits from the opposite slanted face.The image through the prism is flipped, and since only one reflection occurs, the handedness of the image is reversed.Dove prisms have an interesting property that when they rotate along the vertical axis, the transmitted image rotates twice as fast as the prism.It is very important that applications use parallel or collimating beams and keep the large square reflector very clean.Another application is as an inverse.

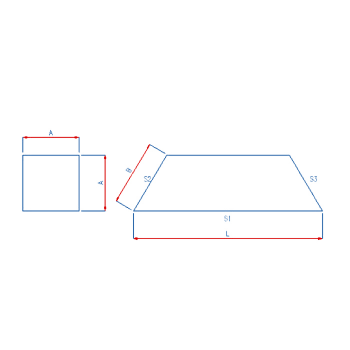

Dove Prism


MaterialBK7, UV Fused Silica, Sapphire, ZnSe, Caf2, Si, Ge, etc.
Size tolerance+/-0.02mm or customer request
Clear Aperture>90%
S/D60-40 40-20 20/10 10/5
Flatness1/10lambda at 632.80nm
Angle tolerance<2'', <3'', <30'', <1', >3'
CoatingAR, HR, Aluminum, Silver or customer request.
TAGS: DOVE prisms, bk7 dove prisms, k9 dove prisms, optical glass dove prisms, fused silica dove prisms, optical JGS1 dove prisms, glass dove prisms, supplier of prisms, optical glass prisms, stock dove prisms
