  • Collimator Lens EFL8mm

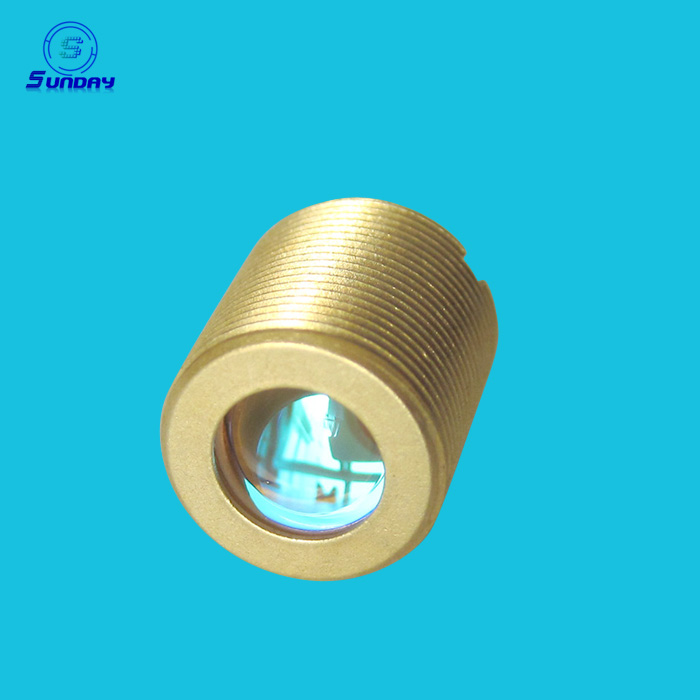

Collimator Lens EFL8mm

A collimating lens is an instrument that converts light from each point in the aperture column into a parallel column of collimating light.

Lens type depends on aberration requirements,For low requirements, simple lenses, such as flat convex or double convex lenses, maybe

used and a larger relative aperture is allowed.High requirements,Achromatic lens will be use, the relative aperture is also appropriately reduced.

Collimator lens is one of the mainly products in Sunday. We have standard ones and also accept customer-made. Sunday has collimator lens

with single aspheric, doublet lenses, triplet lenses.


Product Details

EFL 8mm.png Aspheric, triplet lens are available.


Mount Size:M8*P0.5*8mm or M9*0.5*8mm

Lens Material:D-ZK3

Design Wavelength:530nm

Focal Length:8mm

NA:0.25

Working Distance:5.44mm

CA:0.25mm

Transmission>95%

Coating:BBAR 400-700nm


TAGS: efl 8mm collimator lens, m9 collimator lenses, laser collimator lens best price, aspheric collimator lenses, triplet lens collimator ens
