Collimator Lens EFL6mm

A collimating lens is an instrument that converts light from each point in the aperture column into a parallel column of collimating light.

Lens type depends on aberration requirements,For low requirements, simple lenses, such as flat convex or double convex lenses, maybe

used and a larger relative aperture is allowed.High requirements,Achromatic lens will be use, the relative aperture is also appropriately reduced.

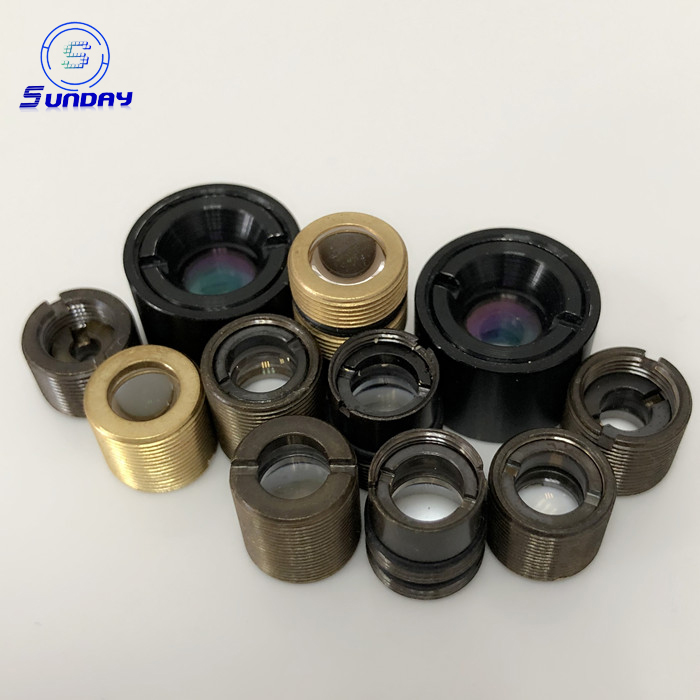

Collimator lens is one of the mainly products in Sunday. We have standard ones and also accept customer-made. Sunday has collimator lens

with single aspheric, doublet lenses, triplet lenses.


Product Details

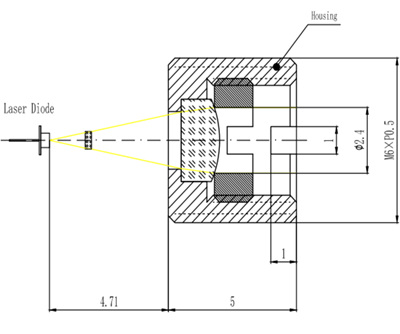

Collimator Lens EFL6mm

Mount Size:M9*P0.5*8mm

Lens Material:D-ZK3

Design Wavelength:530nm

Focal Length:6mm

NA:0.2

Working Distance:4.71mm

CA:2.4mm

Transmission>95%

Coating:BBAR 400-700nm





TAGS: EFL6mm collimator lens, laser collimator lens price, cheap price glass collimator lens, collimator lens for laser
