Home > Products > Laser Components > Line Laer Module
  • Line Laer Module

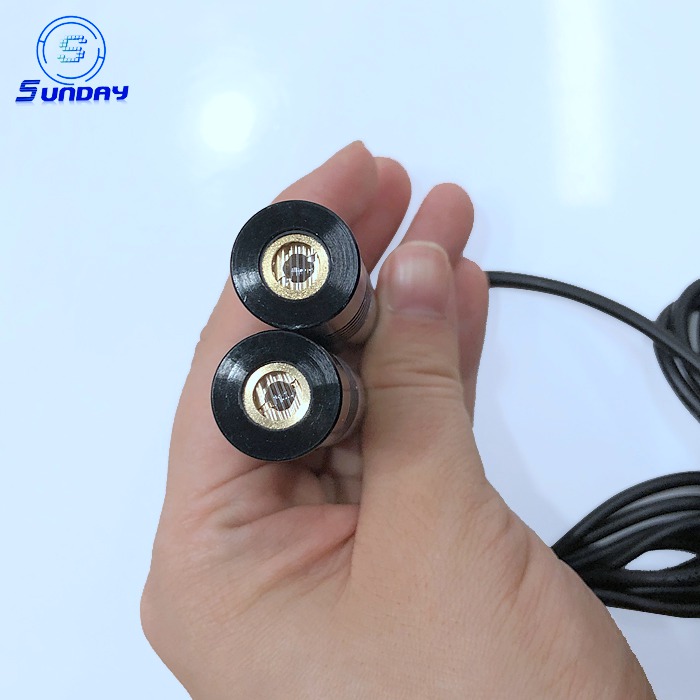

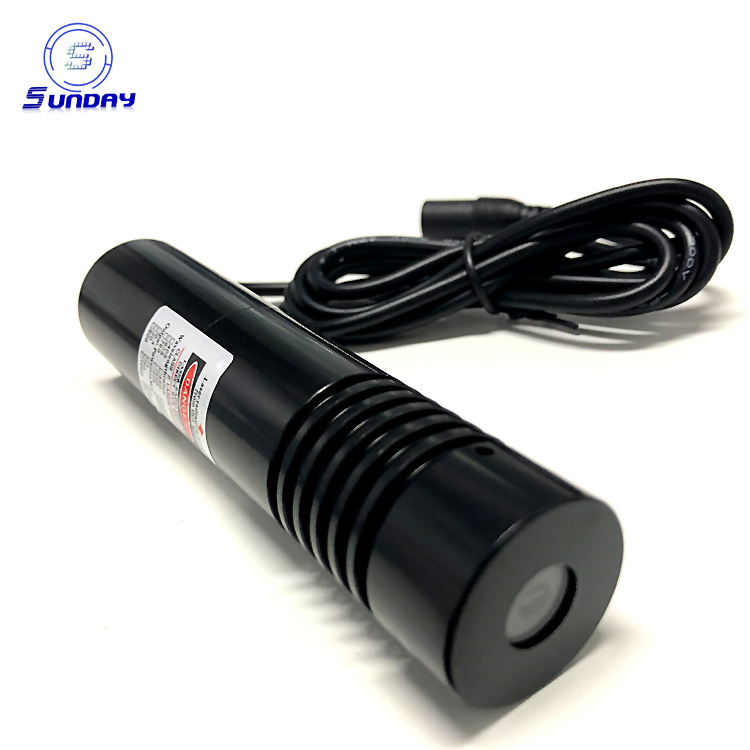

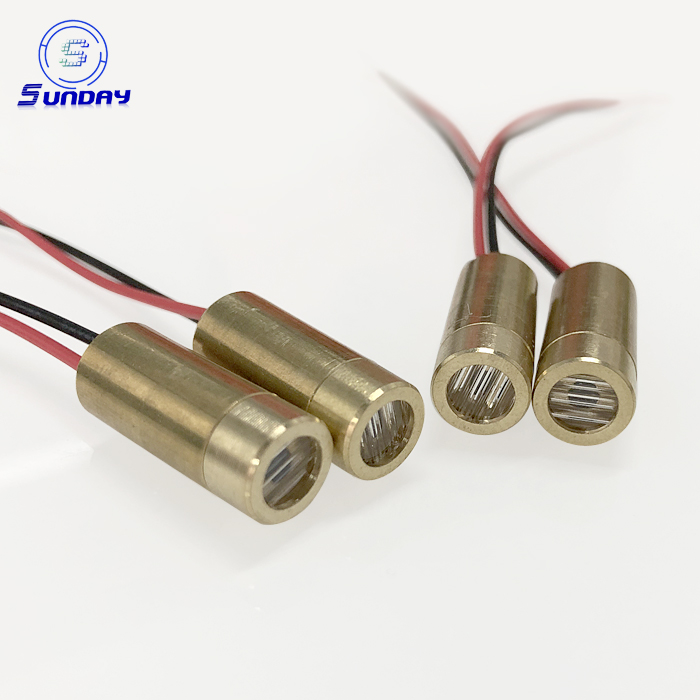

Line Laer Module

High-quality laser diode,optical glass lens, driver circuit and housing
Better line quality


Product Details

Specifications:
Wavelength:405nm,450nm,532nm,635nm,650nm,780nm,808nm,850nm,980nm.
Output power:1mw to 200mw
Beam divergence:1.5mrad
Line thickness: Less then 2mm at 3m
Fan angle:5°、10°、30°、45°、60°、75°、90°
Laser line accuracy:<30”(at 5m)
Operating Voltage:DC3V-5V
Operating Temperature:10℃~35℃
Storage Temperature:-30℃~80℃
Dimensions:8mmx10mm,12mmx45mm 16mmx70mm,22mmx110mm or customer size.
MTTF:8000 hours

Characteriscics:
High-quality laser diode,optical glass lens, driver circuit and housing
Better line quality
High reliability, high stability, long life,low price

Applications:
Machine vision
Industrial inspection
Industrial marking devices
3D contour mapping
Positioning & visualization
Biomedical
High-end alignment
Laser targeting devices and so on..
