  • Biochemical Filter

Biochemical Filter

The wavelengths of filters commonly used in biochemical instruments are 340nm, 405nm, 492nm, 546nm, 578nm, 630nm, etc.


Product Details

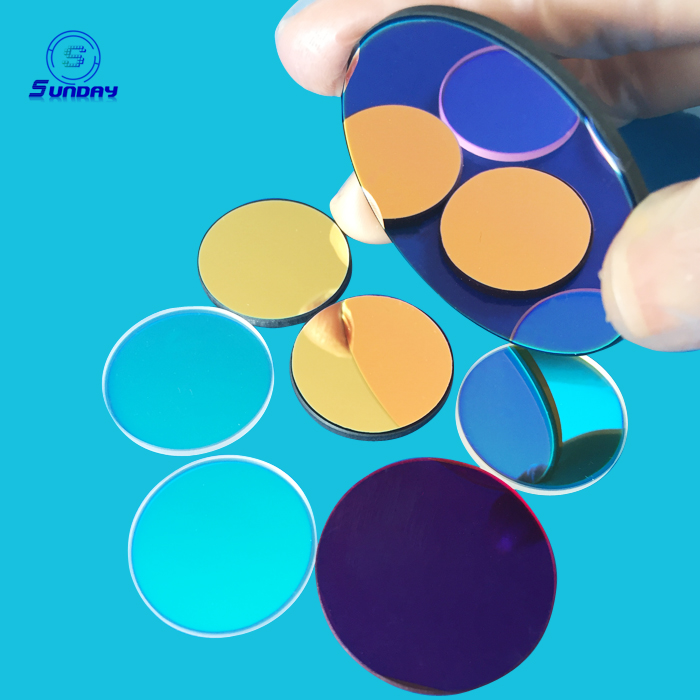

Biochemical Filter

The wavelengths of filters commonly used in biochemical instruments are 340nm, 405nm, 492nm, 546nm, 578nm, 630nm, etc.Biochemical filters are manufactured using plasma assisted deposition (PIAD) and ion beam assisted deposition (IAD) processes to ensure stable spectral performance and long service life.Multiple structural designs, multiple matching types and cut-off background above OD6 can make the system obtain a good SNR.Biochemical filters are mainly used for Biochemical instruments, blood analysis, urine analysis, microplate analyzer and other biochemical analysis instruments, the accuracy of the instrument is mainly determined by the filter.


Typical Wavelength:340nm,380nm,405nm,410nm,510nm,546nm,578nm,620nm,630nm,670nm,700nm,750nm.

Center Wavelength:+/-2nm

Tpeak>45%

FWHM:8nm+/-2nm

Blocking:200-1200nm  OD6

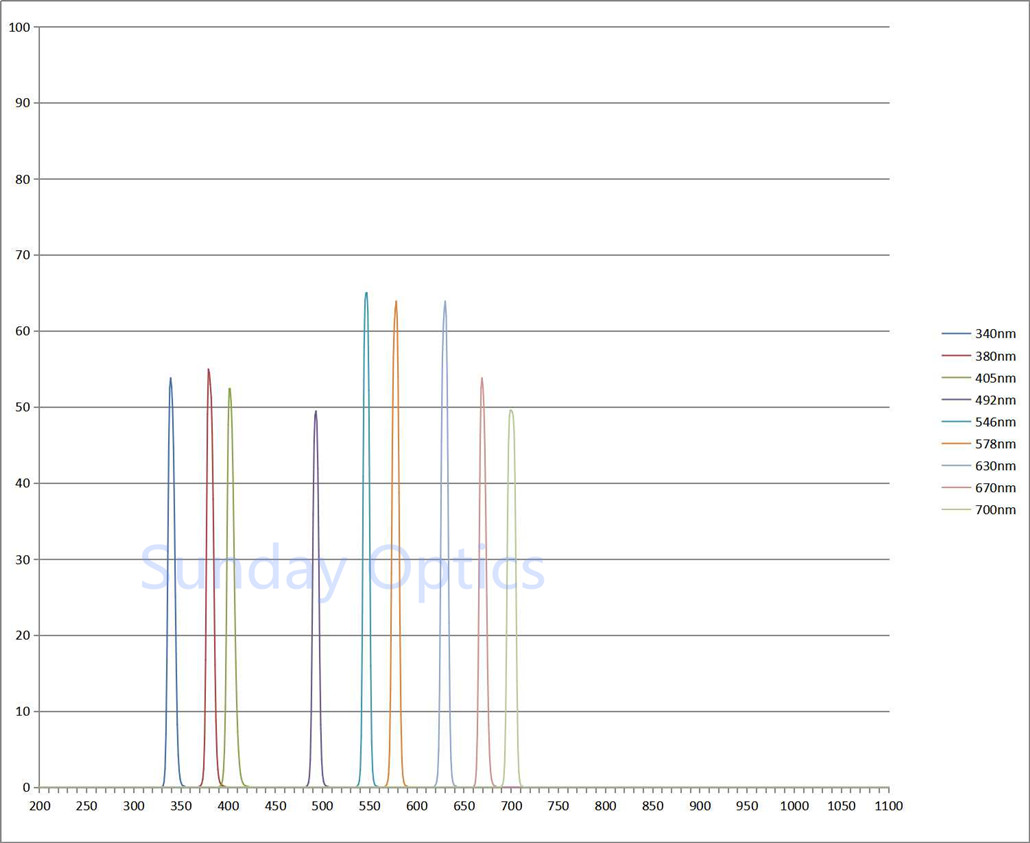

Sample Curve

Note: for more curves, please contact us.

Biochemical Filter


TAGS: Biochemical Filter, glass filters high, narrow bandpass filters, stock narrow bandpass filter, 340nm narrow bandpass filter, optical glass filters, high quality filters, optical glass filter, narrow bandpass filter stock, glass filter
