Home > Products > Polarizer  > NPBS Non-Polarizing Beam Splitter Cube
  • NPBS Non-Polarizing Beam Splitter Cube

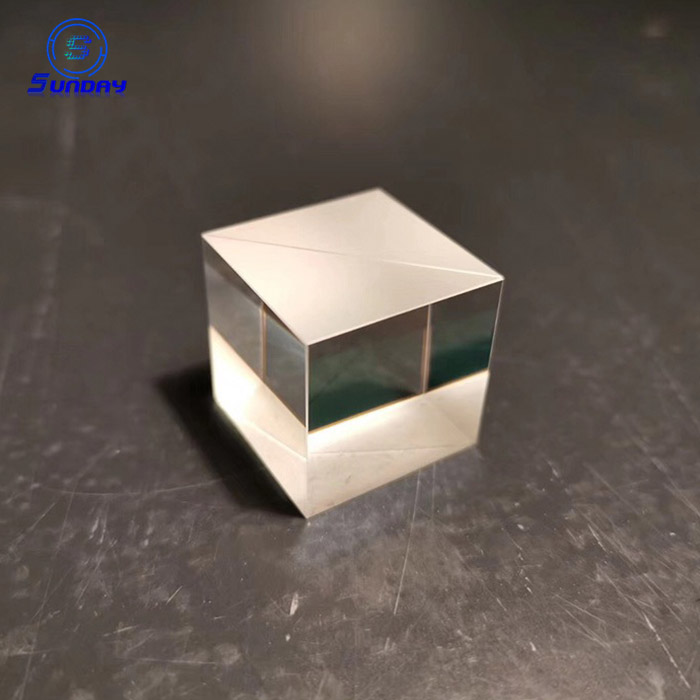

NPBS Non-Polarizing Beam Splitter Cube

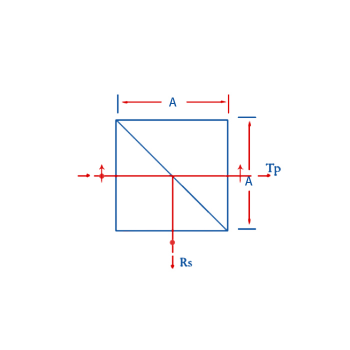

Non-polarizing Beam Splitter Cube is made of two right angle prisms, with the hypotenuse coated metallic dielectirc coating and all input and output face AR Coated. NPBS coating allow the transmission and reflection of P- and S- polarization stay in6% of each other. We can make customized size NPBS beam splitter cube.

Product Details

Non-polarizing Beam Splitter Cube is made of two right angle prisms, with the hypotenuse coated metallic dielectirc coating and all input and output face AR Coated. NPBS coating allow the transmission and reflection of P- and S- polarization stay in6% of each other. We can make customized size NPBS beam splitter cube.





                                                                      Specifications:

NPBS Non-polarizing Beam Splitter Cube

Standard Size:8*8*8mm  10*10*10mm  12.7*12.7*12.7mm  25.4*25.4*25.4mm  38.1*38.1*38.1mm

Size Tolerance:+/-0.05mm or customized

Surface Quality:10-5

Surface Flatness:1/10 [email protected]

Extinction Ratio>100:1

Absorption<10%

Polarization:6%

Wavelength:488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550 nm
                    450-650, 650-900, 900-1200, 1200-1550, 1500-1610 nm

Damaged threshold:15J/cm^[email protected], 20ns, 20HZ

Coating:Typotenuse coated with pbs coating,all input and output coated with AR





Stock Size (Material is H-K9L or JGS1)

SizeWavelengthBeam Ratio
5*5*5mm250-500nm,400-700nm,700-1100nm,1100-1600nm
T/R=50%:50%  T/R=70%:30% T/R=90%:10%
10*10*10mm250-500nm,400-700nm,700-1100nm,1100-1600nmT/R=50%:50%  T/R=70%:30% T/R=90%:10%
12.5*12.5*12.5mm250-500nm,400-700nm,700-1100nm,1100-1600nmT/R=50%:50%  T/R=70%:30% T/R=90%:10%
12.7*12.7*12.7mm250-500nm,400-700nm,700-1100nm,1100-1600nmT/R=50%:50%  T/R=70%:30% T/R=90%:10%
20*20*20mm250-500nm,400-700nm,700-1100nm,1100-1600nmT/R=50%:50%  T/R=70%:30% T/R=90%:10%
25*25*25mm250-500nm,400-700nm,700-1100nm,1100-1600nmT/R=50%:50%  T/R=70%:30% T/R=90%:10%
25.4*25.4*25.4mm250-500nm,400-700nm,700-1100nm,1100-1600nmT/R=50%:50%  T/R=70%:30% T/R=90%:10%
50*50*50mm250-500nm,400-700nm,700-1100nm,1100-1600nmT/R=50%:50%  T/R=70%:30% T/R=90%:10%





NPBS Non-polarizing Beam Splitter Cube

NPBS Non-polarizing Beam Splitter Cube








TAGS: NPBS cube, Non-Polarizing Beam Splitter Cube, NPBS PRISMS, optical glass prisms, bk7 prisms, 10mm NPBS cube, 15mm NPBS cube, good quality npbs cube, optical glass lens, buy NPBS
