Hight Power Polarization Beamsplitter

A polarizing prism can divide incident unpolarized light into two perpendicular lines. Where, P polarized light passes through completely, while S polarized light is reflected at an Angle of 45 degrees, and the exit direction is 90 degrees with P light.

Product Details

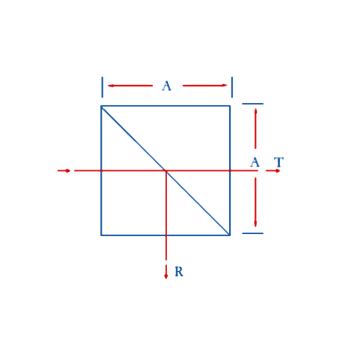

A polarizing prism can divide incident unpolarized light into two perpendicular lines. Where, P polarized light passes through completely, while S polarized light is reflected at an Angle of 45 degrees, and the exit direction is 90 degrees with P light. The polarization splitting prism is composed of a pair of high precision right Angle prisms and one of the prisms has a polarizing dielectric film coated on the hypotenuse.

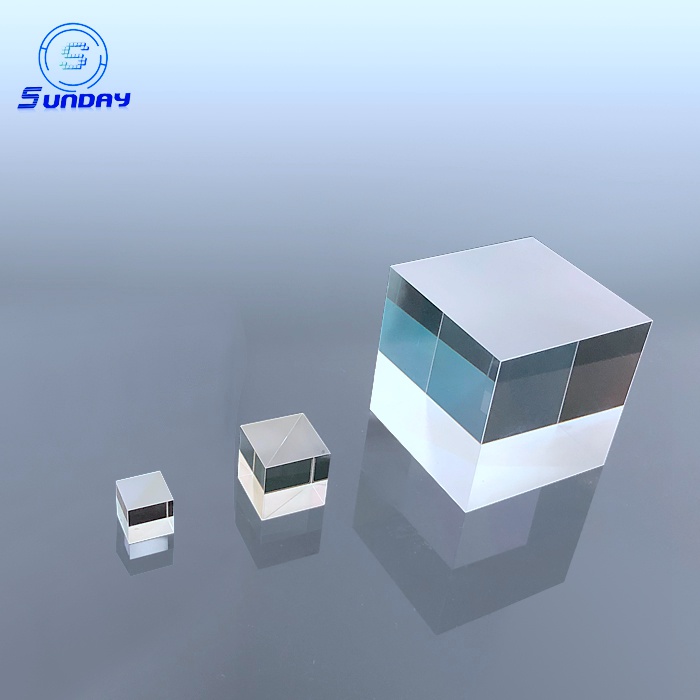

Polarizing Beam Splitter Cube


 Specifications:

Material:H-K9L H-ZF3 glass, Fused Silica

Demenision:1mm,5mm,10mm 12.7mm 20mm 25.4mm 50.8mm or customized

Demenision tol.:+0.00/-0.05

Surface Quality:10-5

CA:>90%

Surface Flatness:1/10 lambda @632.8nm

Beam Deviation<1mins

Extinction Ratio:300:1 1000:1 10000:1

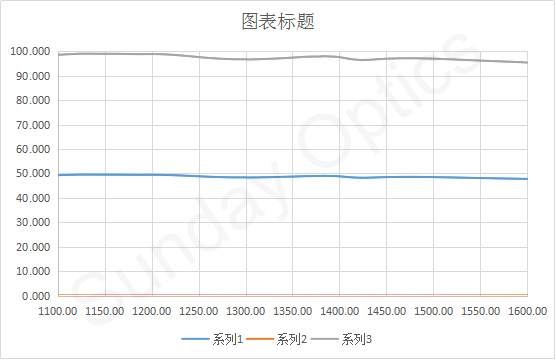

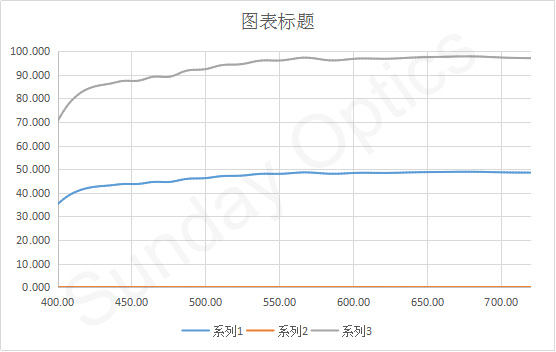

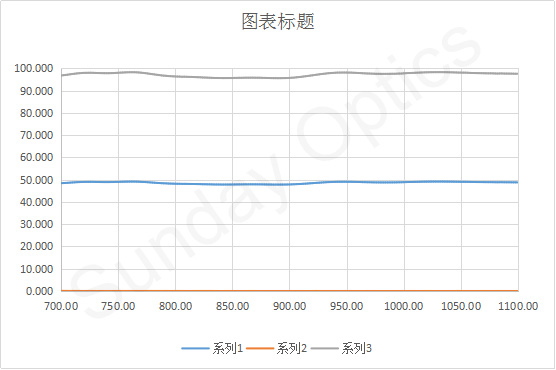

Transmission:Tp>97% Tp>96%; Ts<1%

Reflection:Rs>99%;Rp<5%

Wavelength:488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550 nm
                    450-650, 650-900, 900-1200, 1200-1550, 1500-1610 nm



                                                                             Laser damaged threshold:15J/cm^[email protected], 20ns, 20HZ

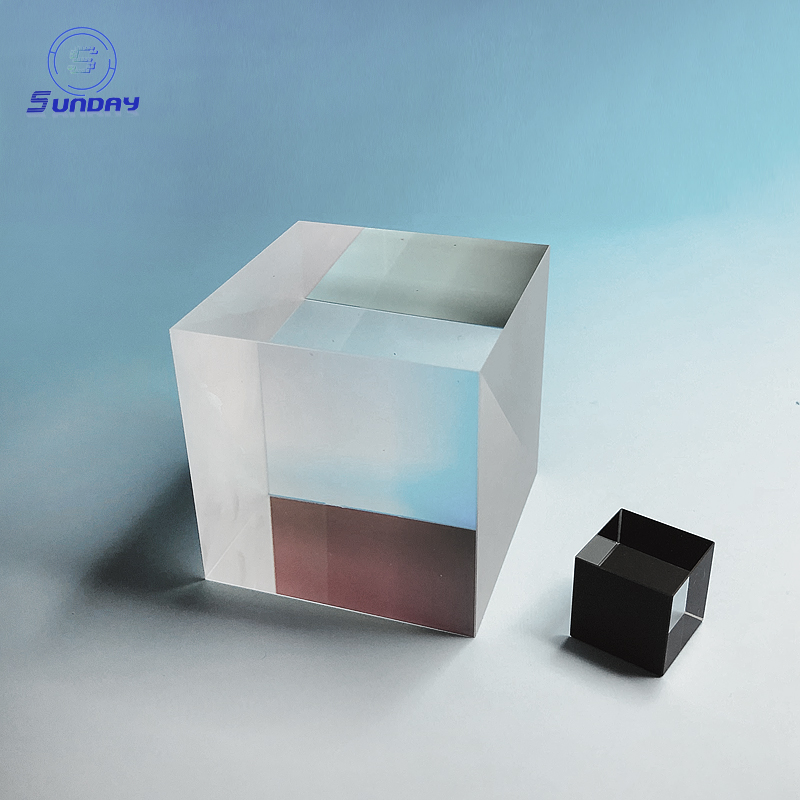

Polarizing Beam Splitter Cube


Polarizing Beam Splitter Cube

Polarizing Beam Splitter Cube
