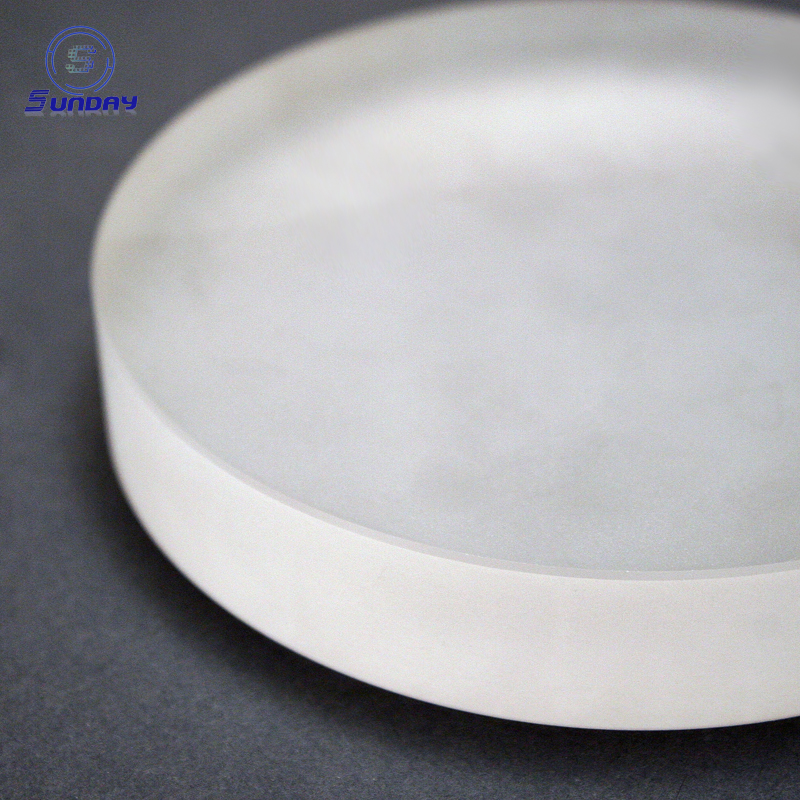

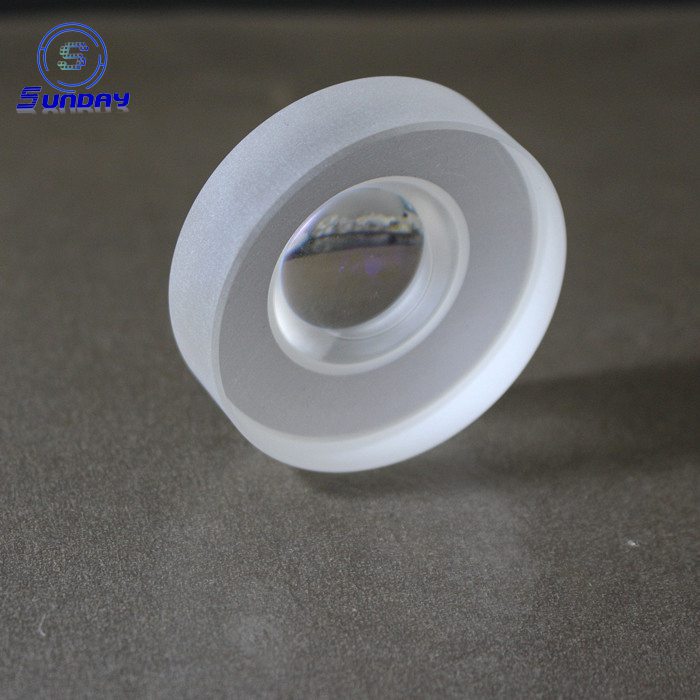

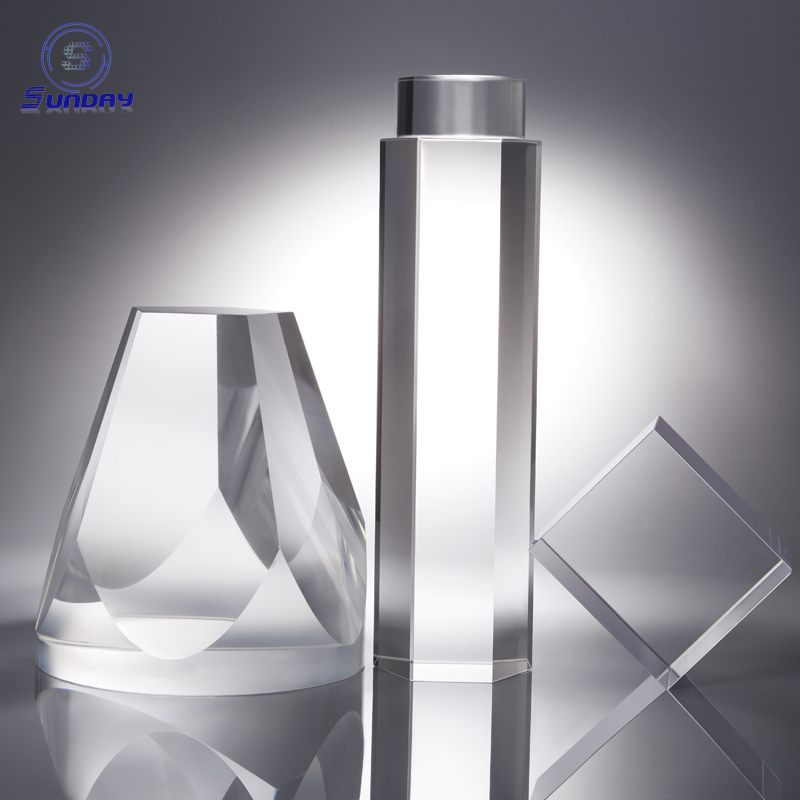

Magnesium Fluoride crystal is used as a lens, prism and window for wavelength from 110nm to 7.5μm.The MgF2 magnesium fluoride window can penetrate well through the VUV region to 121nm and beyond.Magnesium fluoride is mainly used in UV spectra and has good applications for excimer lasers.
Magnesium Fluoride crystal is used as a lens, prism and window for wavelength from 110nm to 7.5μm.The MgF2 magnesium fluoride window can penetrate well through the VUV region to 121nm and beyond.Magnesium fluoride is mainly used in UV spectra and has good applications for excimer lasers. Magnesium fluoride under high energy radiation has only a slight effect on the preferred ultraviolet radiation optical element for space stations.It has been proved that magnesium fluoride material with high laser damage threshold and no color center is more suitable for the optical window material of excimer laser than calcium fluoride material.Magnesium fluoride is the preferred material for fluorination environment because of its chemical composition.
MgF2 used in wave plate, laser system, coating crystal, vacuum window plate, PBS light source, microscope, optical instrument, etc.It is a birefringent optical material which can be used for polarized optical devices in the ultraviolet radiation region.

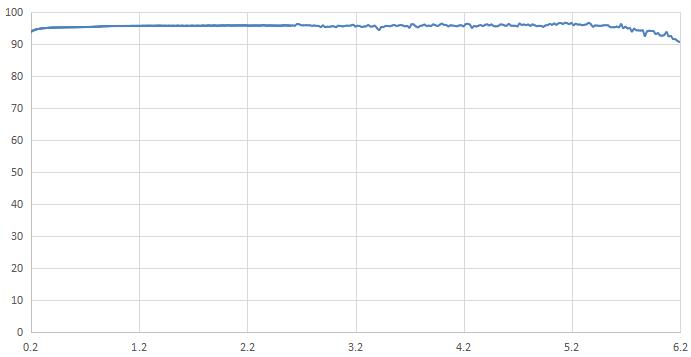

Full Transmission 200-6000nm,UVA,UVB,Visible,Infrared.
Flatness:1/4 [email protected]
|Transmission Range||110 nm to 7.5 μm|
|Transmittance||>90% at 193 nm to 6 μm|
|Refractive Index||No=1.37608; Ne=1.38771 (at 0.7μm)|
|Reflection Loss||5.2% at 0.6 μm (both surfaces)|
|Residual Radiation Peak||20 nm|
|Absorption Coefficient||0.04 cm-1 at 2.7 μm|
|dn/dT||2.3 x 10-6 /℃ parallel c-axis1.7 x 10-6 /℃ perpendicular c-axis|
|Thermal Conductivity||0.3 Wm-1K-1 at 300K|
|Thermal Expansion||13.7 x 10-6 /℃ parallel c-axis8.9 x 10-6 /℃ perpendicular c-axis|
|Knoop Hardness||415 with 100g indenter (kg/mm2)|
|Specific Heat Capacity||1003 J/(kg.k)|
|Dielectric Constant||1.87 at 1MHz parallel c-axis1.45 at 1MHz perpendicular c-axis|
|Youngs Modulus (E)||138.5 GPa|
|Shear Modulus (G)||54.66 GPa|
|Bulk Modulus (K)||101.32 GPa|
|Elastic Coefficient||C11=164; C12=53; C44=33.7C13=63; C66=96|
|Apparent Elastic Limit||49.6 MPa (7200 psi)|
|Solubility||0.0002 g/ 100g water at 20℃|
