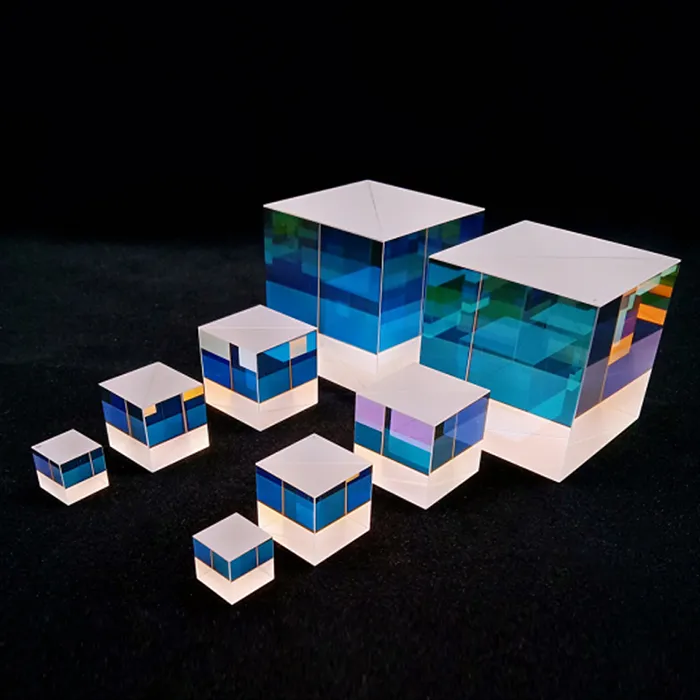

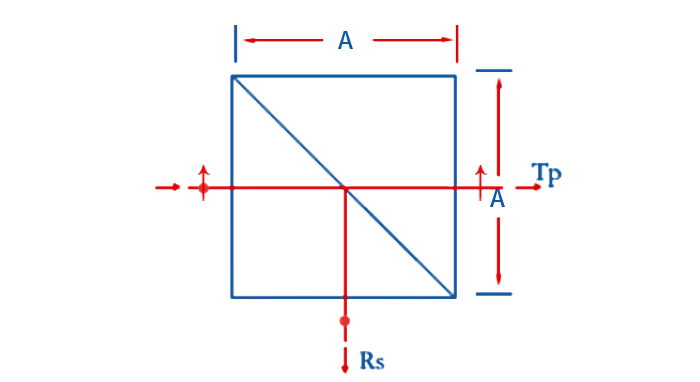

Non-polarizing Beam Splitter Cube is made of two right angle prisms, with the hypotenuse coated metallic dielectirc coating and all input and output face AR Coated. NPBS coating allow the transmission and reflection of P- and S- polarization stay in6% of each other. We can make customized size NPBS beam splitter cube.
Share:
Parameter
| Material | H-K9L or other |
| Standard Size(mm) | 8*8*8 10*10*10mm 12.7*12.7*12.7mm 25.4*25.4*25.4mm 38.1*38.1*38.1mm 50.8*50.8*50.8mm 100*100*100mm |
| T:R | 1:9 2:8 3:7 4:6 5:5 6:4 7:3 8:2 9:1 |
| Size Tol. | -0.2mm |
| Surface Quality | 40-20 |
| Surface Flatness | 1/8 lambda@633nm |
| Absorption: | <10% |

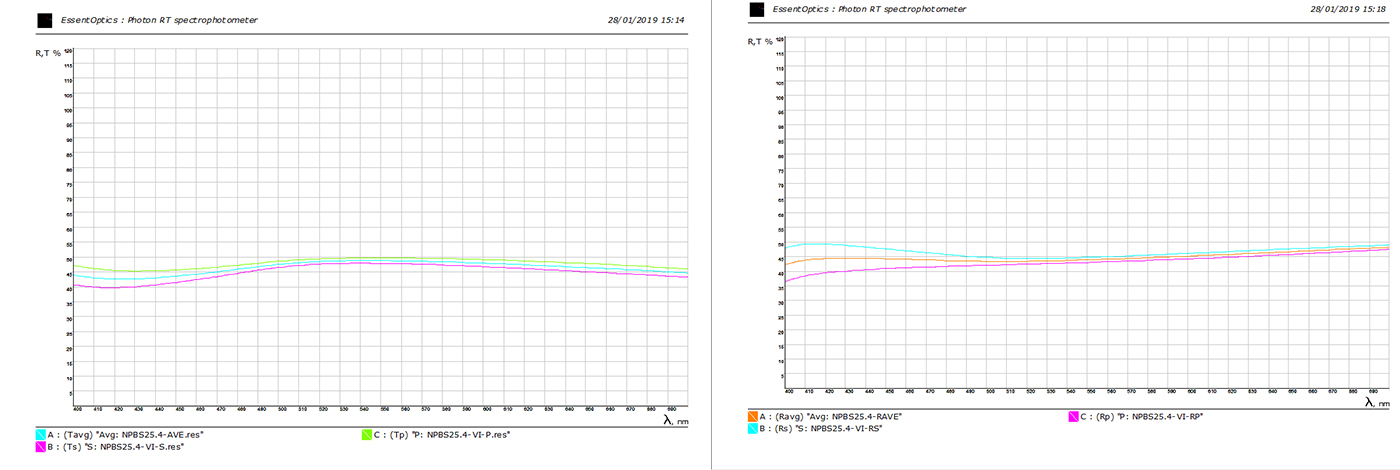

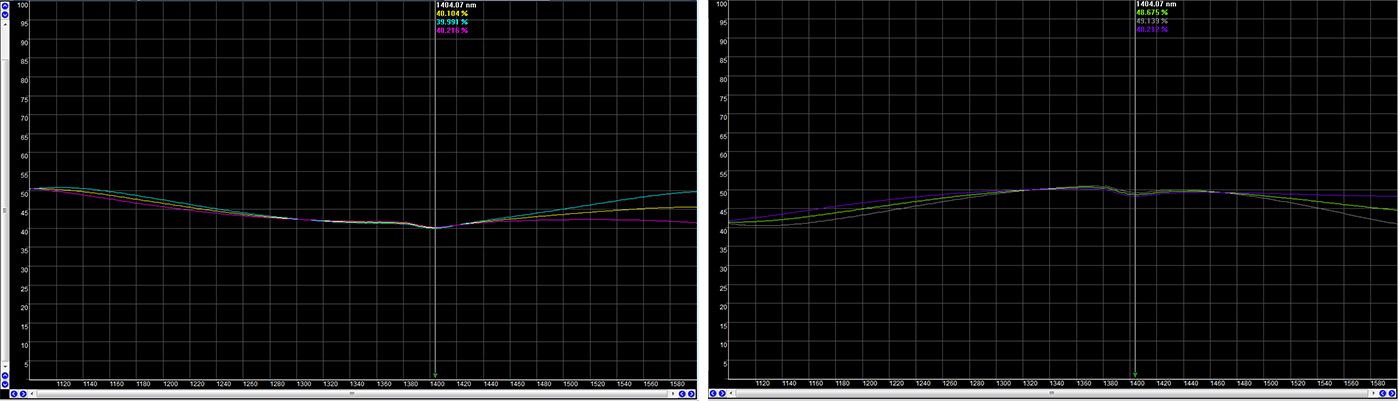

| Polarization: | Tp-Ts& Rs-Rp<6% |
| Wavelength | 400-700nm, 700-1100nm, 1100-1600nm, 1500-2000nm |
| AOI of Splitter | 45°+/-15 |
| Coating | Bevel coated with npbs coating, all input and output coated with AR Ravg<0.5% |
| Glue | Optical glue or optical contact |
| Temperature | -40°C-90°C or no limitation |
