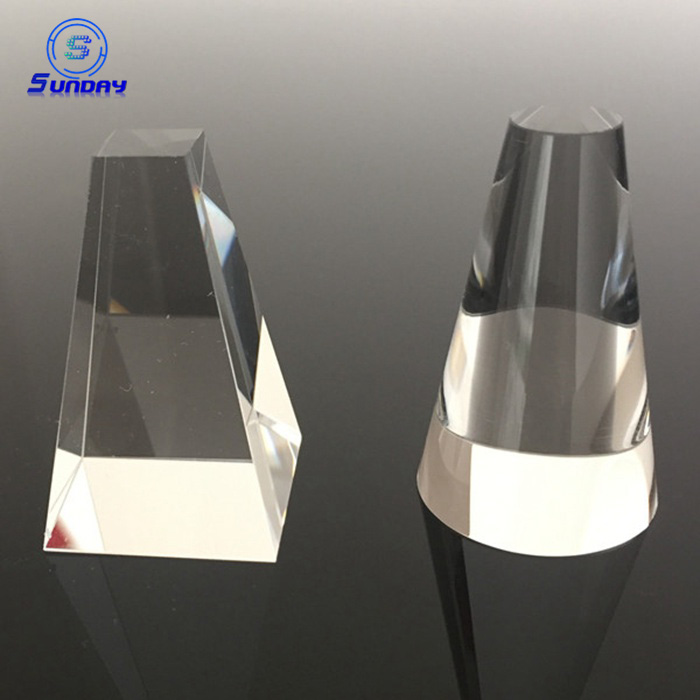

Solar Engery Prism

CPV Solar Power Prisms is used to collect the sunlight, for solar condenser, solar energy concentrating photovoltaic (CPV) system, solar power generation, etc., which is the main optical component when solar power transform to electric energy.

Product Details

CPV Solar Power Prisms is used to collect the sunlight, for solar condenser, solar energy concentrating photovoltaic (CPV) system, solar power generation, etc., which is the main optical component when solar power transform to electric energy.

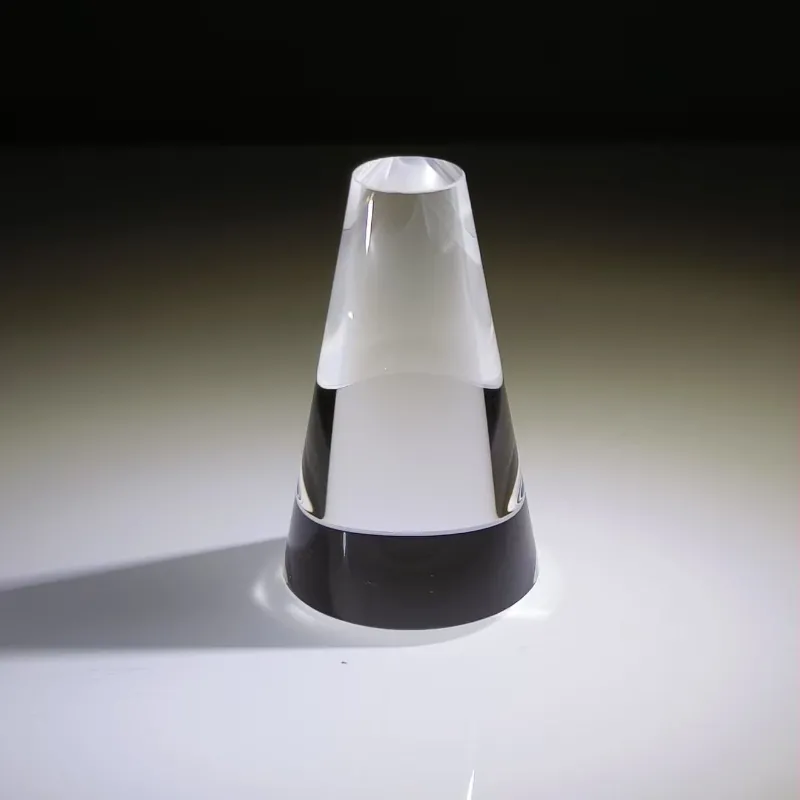

Solar Engery Prism

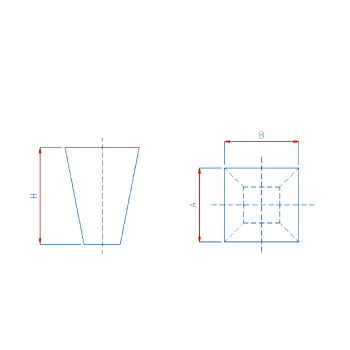

Specifications

MaterialBK7, UV Fused Silica, or customer request.
Size0.5mm-300mm
Size tolerance+/-0.1mm or customer request
Clear Aperture>90%
S/D60-40 40-20 20/10 10/5
Flatness1/10lambda at 632.80nm
Chamfer0.25mmx45°
Angle tolerance<2'', <3'', <30'', <1', <3'
CoatingAR, HR, Aluminum, Silver or customer request.
