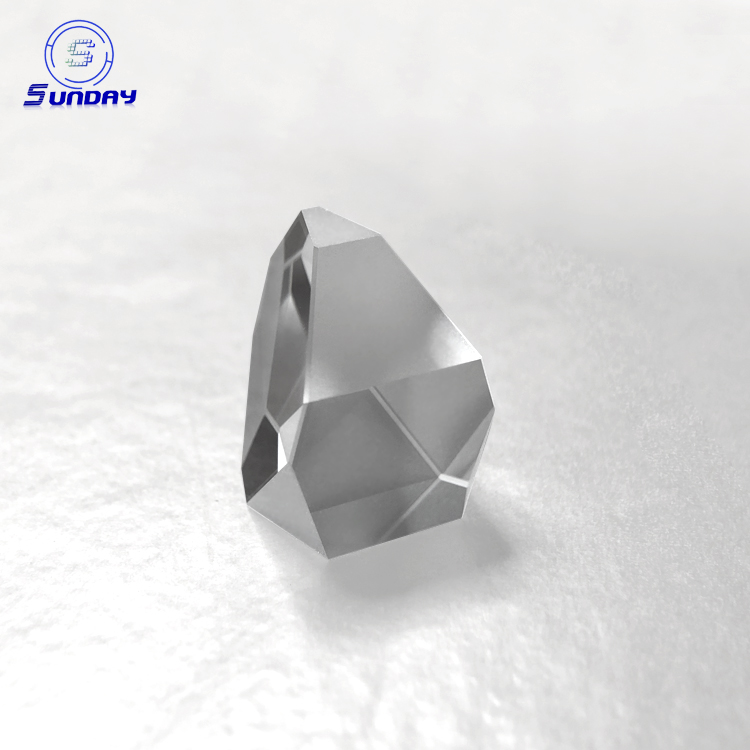

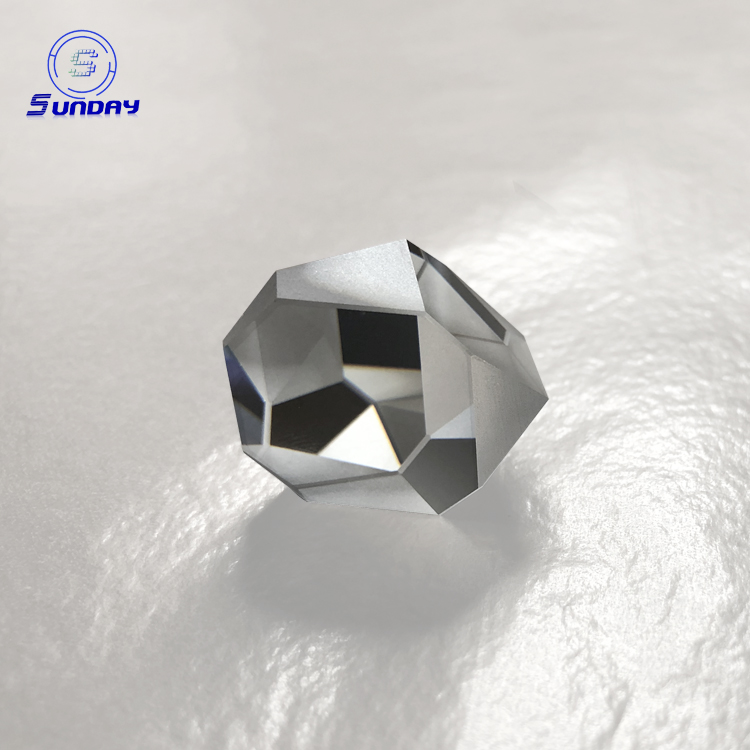

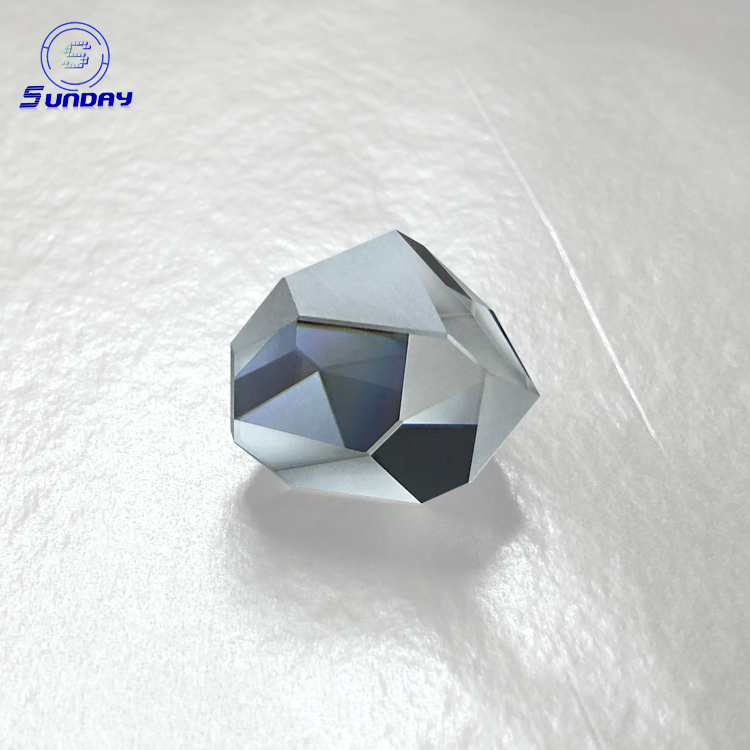

Schmidt Pechan Prism

Schmidt prisms are used to invert and revert an image to angle of 45°. The 45° deviation makes Schmidt prisms useful in eyepiece
assemblies and imaging systems requiring a path bend. The aluminized roof surfaces enhance the overall efficiency while the high
accuracy roof angle tolerance increases the prism’s resolution.
Used in Binoculars, Microscopes and Survey Equipment.

Product Details

Schmidt prisms are used to invert and revert an image to angle of 45°. The 45° deviation makes Schmidt prisms useful in eyepiece
assemblies and imaging systems requiring a path bend. The aluminized roof surfaces enhance the overall efficiency while the high
accuracy roof angle tolerance increases the prism’s resolution.
Used in Binoculars, Microscopes and Survey Equipment.

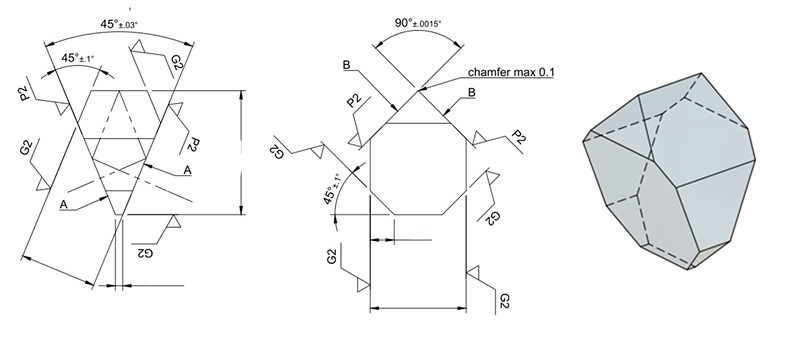

Material:Optical Glass

Size:5-100mm

Surface Quality:20-10

Flatness:1/10 lambda

Angle tolerance:<1 arcmin

Coating: Aluminum, Silver, AR coating

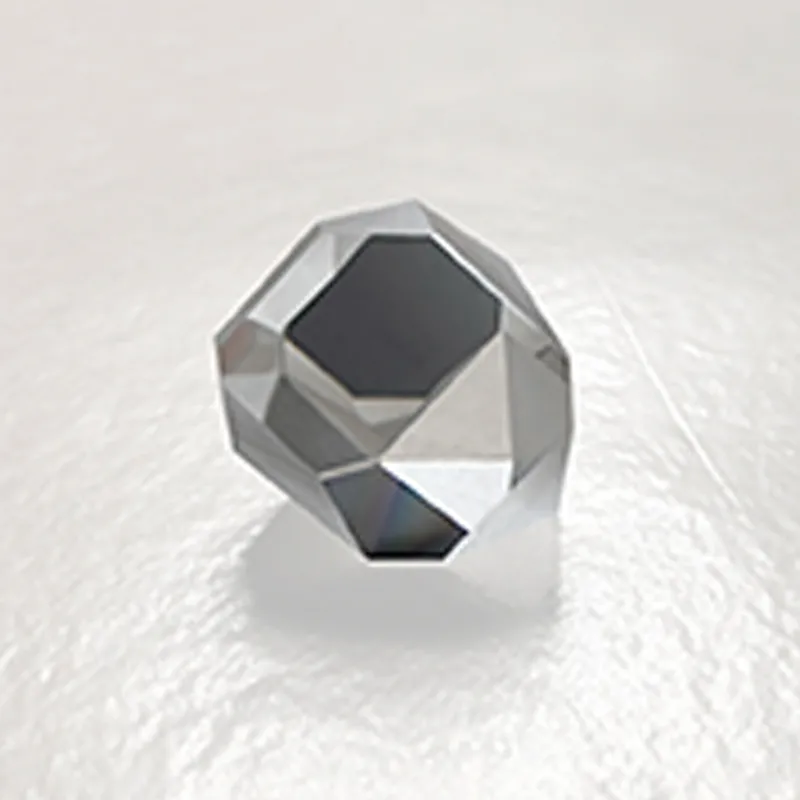

Schmidt Pechan Prism

TAGS: schmidt prisms, Optical Glass Prism, schmidt pechan prism, bk7 schmidt prism, 20mm schmidt prisms, glass prism, optical glass, JGS1 prisms, coating prisms, Aluminum prism
