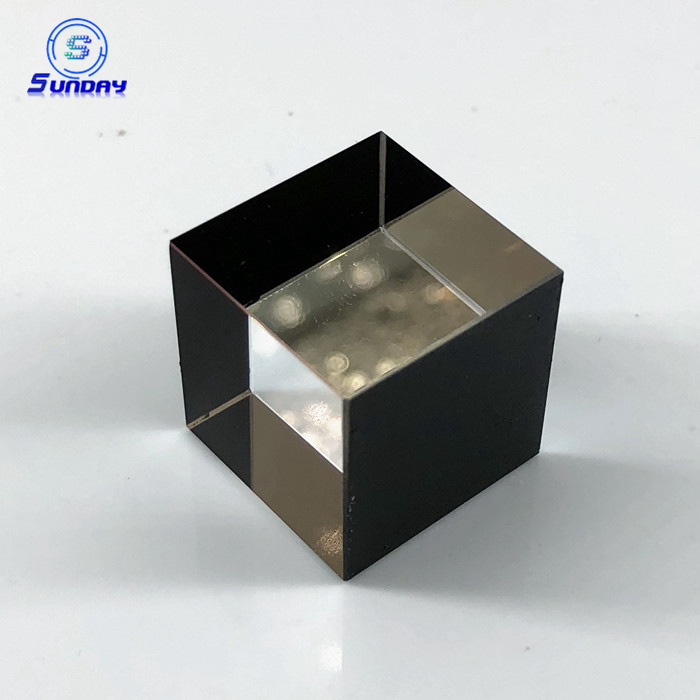

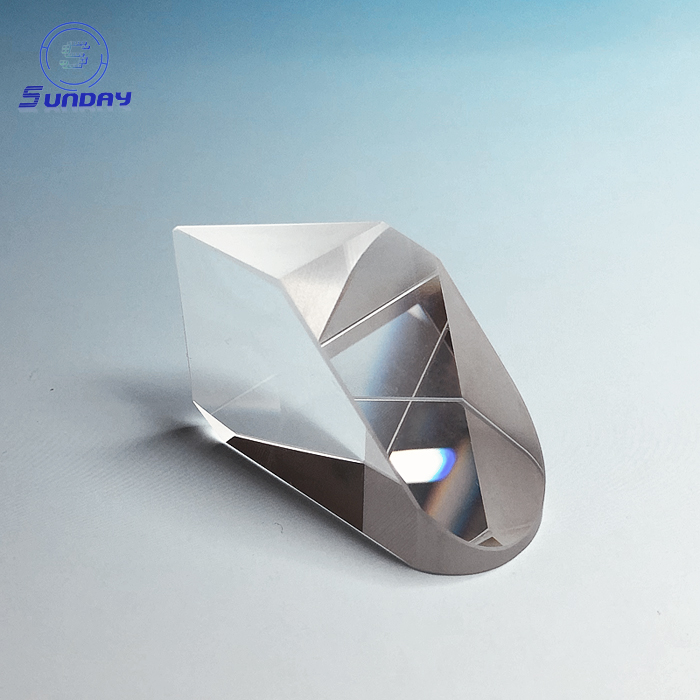

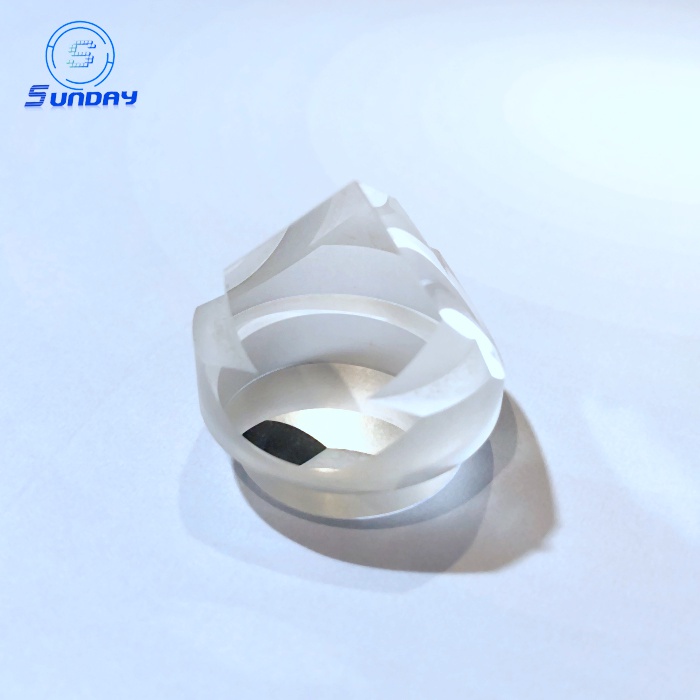

Roof Prism

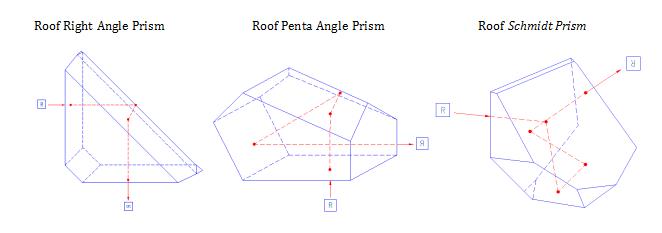

With the roof surface, these prisms are used to invert and reverse the image. A roof prism may be used to revert and invert the image as well as bend the line of sight through a 90 degree angle, We provide roof right angle prisms, roof penta or half penta prisms, Schmidt prisms, or other roof prism specified by customers.

Product Details

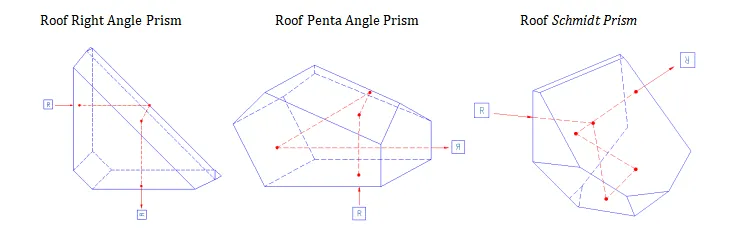

With the roof surface, these prisms are used to invert and reverse the image.A roof prism may be used to revert and invert the image as well as bend the line of sight through a 90 degree angle, We provide roof right angle prisms, roof penta or half penta prisms, Schmidt prisms, or other roof prism specified by customers.

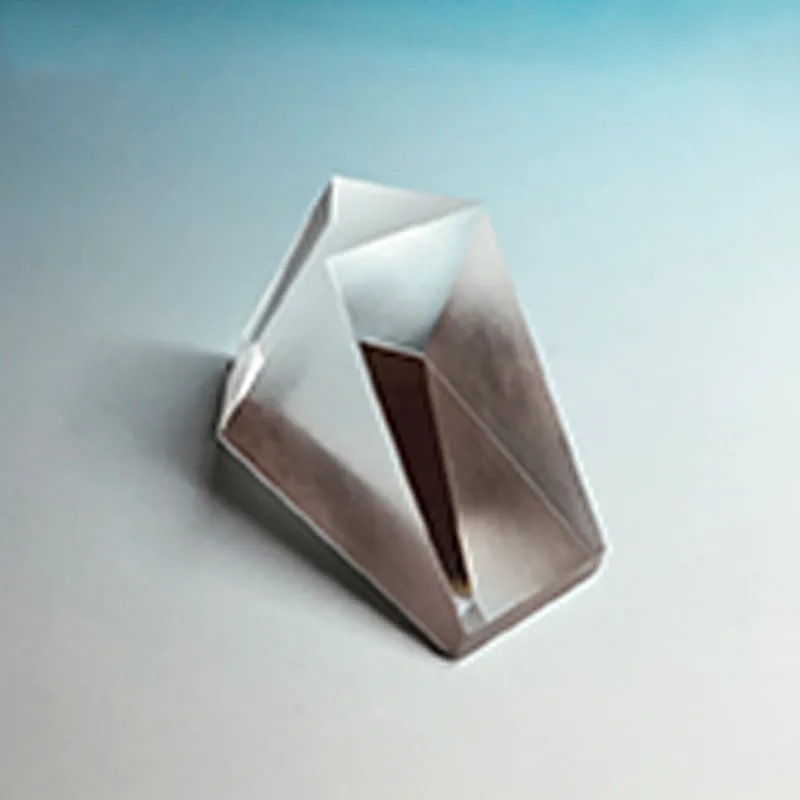

Roof Prism


Specifications

MaterialBK7, UV Fused Silica, Sapphire, ZnSe, Caf2, Si, Ge, etc.
Size3mm-300mm
Size tolerance+/-0.02mm or customer request
Clear Aperture>90%
S/D60-40 40-20 20/10 10/5
Flatness1/8 1/4lambda at 632.80nm
Chamfer0.25mmx45°
Angle tolerance<2’’,<3’’,<30’’,<1’,<3’
CoatingAR, HR, Aluminum, ilver or customer request.
TAGS: roof prism manufacture, high precison roof prism, penta angle roof prism, schmidt prisms, optical glass prisms manufacuture, right angle prism fused silica, penta angle prisms, Fused silica prisms 1 inch, 25.4mm prisms, buy prisms
