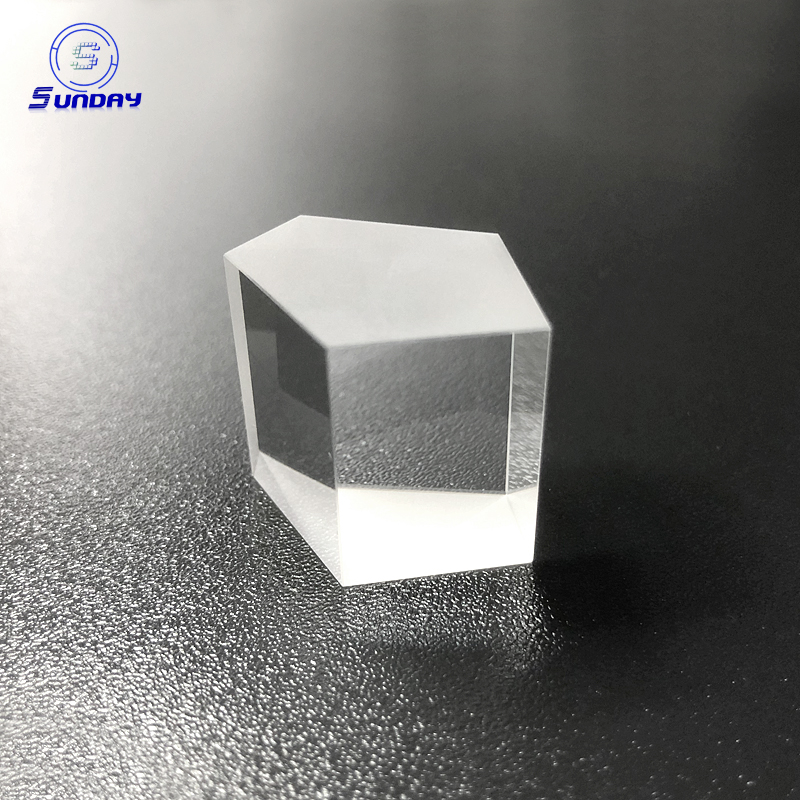

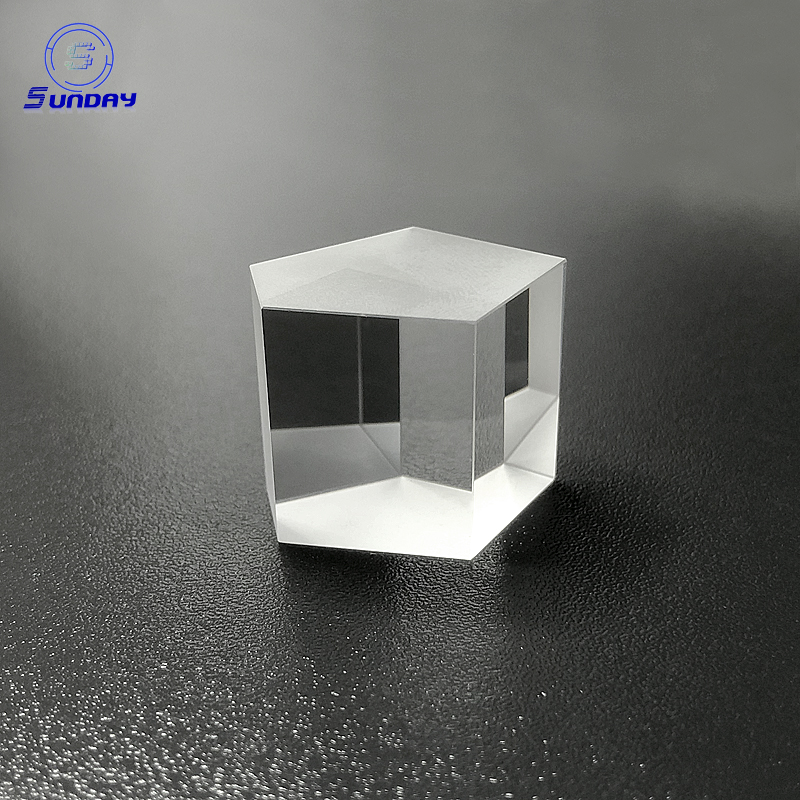

Penta Angle Prism are widely used in laser level, Image system, precision system, and optical area. For penta prism, the deviation angle of 90° is independent of the orientation of the prism, thus it is particularly important and wide in application which the prism orientation cannot be precisely controlled, we can produce high precision penta angle prism,and make coating according to customer's request.
|Material||BK7, UV Fused Silica,Sapphire, ZnSe,Caf2,Si,Ge,etc.|
|Size tolerance||+/-0.02mm or customer request|
|S/D||60-40 40-20 20/10 10/5|
|Flatness||1/10lambda at 632.80nm|
|Coating||AR, HR, Aluminum, Silver or customer request.|
