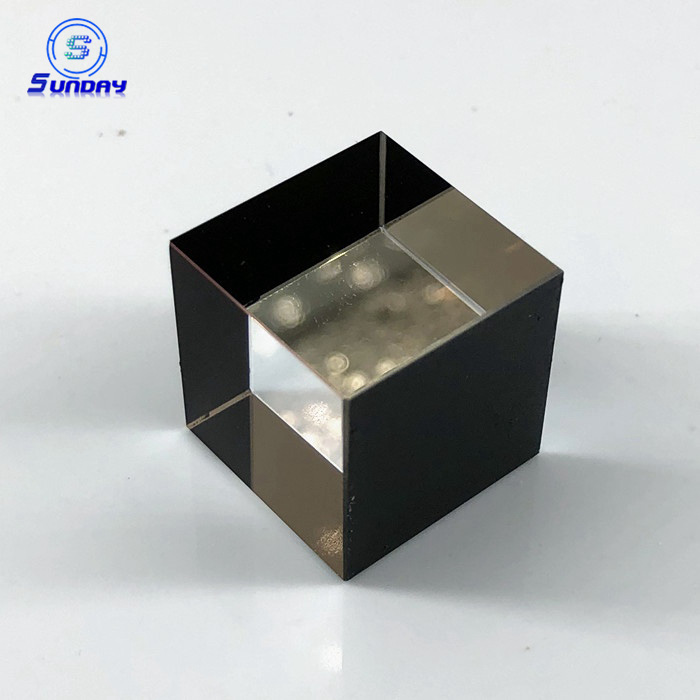

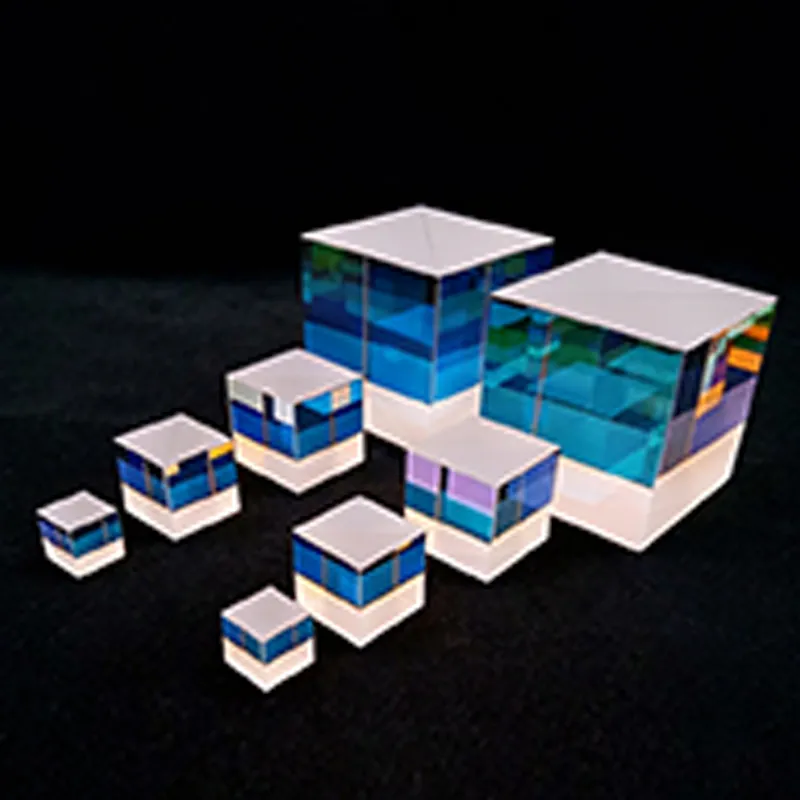

Conventional Beam Splitter Cube

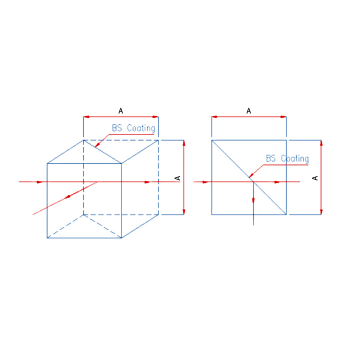

Conventional Beam splitter cube is consist of two right angle prisms. one of the cant face will be coated metal coating or medium which has good reflective. other faces will be coated AR coating.

Product Details

Beamsplitter is an optical element that divides a beam of light into two beams according to a certain ratio of reflection and transmission.In the usual laser optical system, lighting optical system, spectrometer optical system, beam splitter is a common optical element degree of transmission and reflection percentage, transmission and reflected light polarization state to carry out segmentation.We can offer the K9 broadband splitter plate, elliptical, ultraviolet spectroscopic,uv spectral wedge, calcium fluoride (CaF2) broadband infrared spectral wedge, zinc selenide (ZnSe) infrared broadband polarization spectral wedge, standard Cube beam spliiter, PBS, NPBS and other standard splitting optics.The function of depolarization splitting prism is to divide the incident light intensity according to a certain proportion of reflection and transmission, so it is an ideal splitter for controlling the application of laser beam.The function of a polarization spectroscope (PBS) is to divide incident light according to a certain percentage of reflected and transmitted light according to the corresponding polarization state of light.

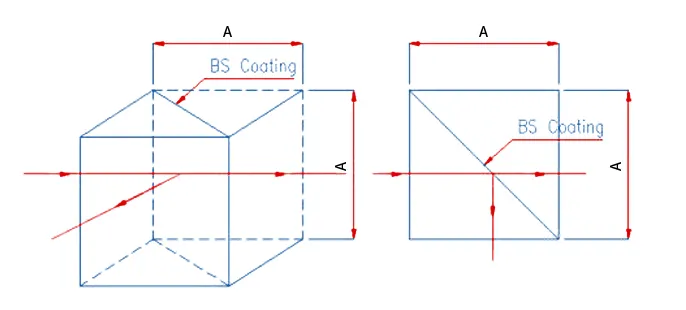

Conventional Beam splitter cube is consist of two right angle prisms. one of the cant face will be coated metal coating or medium which has good reflective. Other faces will be coated AR coating.

Conventional Beam Splitter Cube

MaterialH-K9L N-BK7 JGS1
Demenision10mm 12.7mm 20mm 25.4mm 50.8mm or customized
Demenision tol.+0.00/-0.05
Surface Quality20-10 10-5
CA>90%
Surface Flatness1/10 lambda@633nm
Beam Deviation<1mins
T/R50/50±5%, for natural light T=(Ts+Tp)/2, R=(Rs+Rp)/2
Wavelength488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550 nm
450-650, 650-900, 900-1200, 1200-1550, 1500-1610 nm
