Ball lenses are an ideal solution for improving signal coupling between fibers, emitters, transmitters, receivers, and detectors. They are also widely used as objective lenses in barcode scanning and endoscopy applications.
A key feature of ball lenses is their short back focal length, which reduces the required distance between the lens and the optical fiber. This enables precision coupling, especially in applications where space or size is limited.

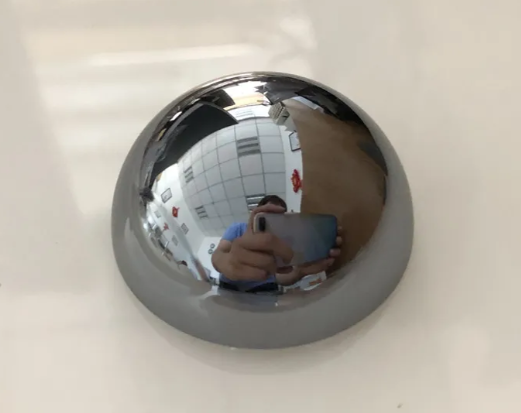

Ball lenses are generally used in pairs. One lens acts as a collimator, correcting the output from an optical fiber or diode, while the other lens focuses the light back into the coupled fiber. For smaller applications, half-ball lenses provide a more compact solution.
Gradient index lenses, also known as GRIN lenses, are often used in similar applications to ball lenses. However, ball lenses offer several advantages.
First, ball lenses are smaller in size and more cost-effective than GRIN lenses. In addition, they are easier to mount, position, and align because of their rotational symmetry. Another important advantage is that the focal length of a ball lens is less sensitive to climatic conditions.
When focal length shifts, coupling efficiency is usually reduced. Because ball lenses maintain more stable focal performance under temperature variations, they are often more efficient for applications exposed to significant changes in temperature.
Ball lenses can be made from a variety of materials, and selecting the right one depends on your application and the conditions in which the lens will operate.
Ideal for demanding applications across the ultraviolet (UV), visible, and near-infrared spectra. Offers excellent UV transmission from 200 nm to 2.2 μm. Its low coefficient of thermal expansion makes it suitable for extreme conditions.
Features a high refractive index and low spherical aberration. Sapphire is extremely strong, chemically stable, and one of the hardest known natural materials. It provides superior optical transmission and operates effectively from 200 nm to over 5,000 nm, making it well-suited for harsh environments.
Exceptionally hard and wear-resistant to metals and chemicals. The red color improves visibility, making handling easier in assembly and alignment processes.
Offers a high refractive index, excellent for optical telecommunications products. It is wear-resistant, chemically robust, and ideal for applications requiring high coupling efficiency in transmitters and receivers.
Highly resistant to corrosion and abrasion, with stability at extreme temperatures. Best suited for environments with chemicals, acids, salts, or applications such as chemical pumps, flowmeters, bearings, gages, valves, and down-hole tools.
Commonly used as pre-forms for aspheric lenses. Chemically resistant and with low thermal expansion, it is reliable for general optical applications. High-index glasses like BAF-8 are also excellent for fiber coupling applications.
The wide range of available materials highlights the importance of obtaining expert guidance to select the most suitable lens for your specific needs.
Beyond material, factors such as focal length, back focal length, diameter, and anti-reflective coatings play a critical role in performance. Spherical aberration scales with focal length, which is directly influenced by lens diameter—smaller diameter ball lenses generally provide better optical performance. Consulting technical experts ensures that your selection balances material, geometry, and coatings to optimize results for your application.
