When most people think of a "lens," they picture a spherical lens. However, lenses come in various geometries, and one of the most widely used alternatives is the cylindrical lens. How does a cylindrical lens differ from a spherical lens, and what applications benefit from its unique properties? This guide will explore these questions in detail.
Consider a glass sphere: if we slice it across any plane, the resulting piece is a spherical lens, featuring one flat surface and one curved surface. When light passes through the flat side, it converges to a single focal point in front of the lens. The orientation of a spherical lens does not affect the shape or position of the focused light, thanks to its rotational symmetry.

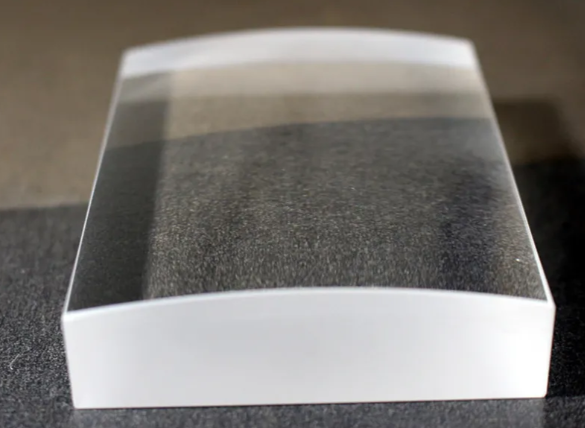

Now, imagine a glass cylinder. If we cut the cylinder along a plane parallel to its longest axis, we obtain a cylindrical lens—flat on one side and curved along the other. Unlike spherical lenses, the curvature of a cylindrical lens extends in only one direction. This has a crucial effect: when light passes through a cylindrical lens, it focuses into a line rather than a point. Moreover, rotating the cylindrical lens along its optical axis changes the orientation of this focal line, making alignment and assembly critical for precise optical systems.
At this point, one might wonder why anyone would use a lens that transforms light into a line rather than a point. Cylindrical lenses, however, offer unique advantages and are essential in many optical systems. Their ability to focus light along a single dimension enables precise control in applications where traditional spherical lenses cannot achieve the desired effect.
Astigmatism is an optical aberration that can cause images to appear distorted or blurred. It occurs when light rays entering the eye or an optical system are not focused equally in all directions, resulting in different focal points in different planes.
A cylindrical lens is designed with different refractive powers along different axes, allowing it to focus light in only one plane. When light passes through the lens, it is focused differently in the vertical and horizontal planes.
For astigmatism correction, the cylindrical lens is positioned so that its axis aligns with the direction of the astigmatism. This alignment compensates for the differences in focal points between the planes, bringing them into alignment and producing a clearer, sharper image.
In short, a cylindrical lens corrects astigmatism by focusing light along a single plane, compensating for the difference in refractive power across planes to achieve clear vision.
Ideally, light emitted from a laser should have a perfectly circular profile. However, semiconductor lasers often produce an elliptical beam shape. To collimate the beam and couple it effectively into an optical fiber, it is necessary to correct this beam profile. This can be achieved by placing a cylindrical lens with its main axis perpendicular to the fast axis of the laser beam.
Cylindrical lenses are widely used in laser beam shape correction to reshape the beam and enhance its quality. Laser beams can exhibit non-uniform intensity profiles or non-circular shapes due to imperfections in the laser cavity or the operating mode. Cylindrical lenses help correct these distortions, producing a more uniform and circular beam.
When a laser beam passes through a cylindrical lens oriented at a specific angle, the lens refracts light more in one direction than the other. This initially creates an elliptical beam, with one axis expanded relative to the other. By carefully adjusting the orientation and position of the cylindrical lens, the beam can be transformed into a more uniform, circular profile suitable for optical systems.
Cylindrical lenses are commonly used in optical spectroscopy to control both the spatial and spectral properties of light within an optical system. Spectroscopy measures the interaction of light with matter and is widely applied in fields such as chemistry, physics, and biology to analyze material composition and properties.
A typical application of cylindrical lenses in spectroscopy is within monochromators, which separate light into its component wavelengths for analysis. Cylindrical lenses focus the incoming light onto a diffraction grating or prism, which disperses the light into its constituent wavelengths. By carefully selecting the lens’s focal length and orientation, the size and shape of the beam can be precisely controlled, ensuring that the full spectrum of light is accurately dispersed for measurement.
Cylindrical lenses are widely used in laser line scanning to shape a laser beam into a thin, straight line that can be scanned across a surface to generate high-resolution images or 3D profiles. This technique is applied in 3D metrology, quality control, and machine vision.
To form a laser line, a cylindrical lens is placed in the optical path of the laser beam, perpendicular to the scanning direction. The lens refracts light more along one axis than the other, producing a line-shaped beam that is focused in one direction and expanded in the perpendicular direction. The width and length of the line can be controlled by adjusting the lens’s position and focal length relative to the laser.
The line-shaped beam is scanned across the target surface using a mirror or galvanometer scanner. As the beam interacts with the surface, the reflected or scattered light is captured by a camera or detector. By analyzing the intensity or phase of the collected light, a detailed 3D surface profile or high-resolution image can be generated.
In microscopy, cylindrical lenses are often used in confocal systems to shape the excitation beam into a thin line scanned across the sample. Light reflected or emitted from the specimen is collected through a pinhole aperture that rejects out-of-focus light, producing high-resolution images.
Cylindrical lenses also correct optical aberrations that can cause image distortion or blurring. Proper selection of the lens position and orientation helps achieve sharper, clearer images.
In fluorescence microscopy, cylindrical lenses shape the excitation beam to improve the signal-to-noise ratio. By optimizing the lens’s focal length and orientation, the excitation beam can uniformly illuminate the specimen, resulting in higher-quality fluorescence images.
1. What is a cylindrical lens and what does it do?
A cylindrical lens has curvature along only one axis, focusing or expanding light in a single dimension. Unlike a spherical lens that forms a point focus, a cylindrical lens produces a line focus. This one-axis optical power makes cylindrical lenses ideal for beam shaping, line illumination, and correcting axis-specific aberrations.
2. How is a cylindrical lens different from a spherical lens?
Spherical lenses have curvature along both axes and focus light to a point. Cylindrical lenses curve in only one axis, focusing light to a line. Rotating a cylindrical lens changes the orientation of the line focus, providing directional control over beam shape.
3. When should an optical system use a cylindrical lens?
Cylindrical lenses are used when one-dimensional control is required—such as converting a beam into a line, compressing or expanding only one axis of a beam, or correcting astigmatism. Common applications include elliptical laser diode beams, line-scan imaging, monochromator beam conditioning, and confocal or fluorescence line illumination.
4. How do cylindrical lenses correct astigmatism?
Astigmatism occurs when an optical system focuses differently in two perpendicular planes. A cylindrical lens adds optical power along a single axis. When aligned with the astigmatism axis, it adjusts one focal plane to match the other, reducing blur and improving image sharpness in cameras, optical modules, and vision systems.
5. Why do laser diodes often need cylindrical lenses for beam shaping?
Laser diodes frequently emit elliptical beams with differing divergence along the fast and slow axes. Cylindrical lenses can expand or compress one axis, improving beam symmetry and enabling better collimation. This is commonly done before coupling the beam into optical fibers or feeding downstream imaging or metrology systems.
6. How are cylindrical lenses used to create a laser line for scanning?
A cylindrical lens focuses light along one axis while leaving the perpendicular axis relatively uncompressed, transforming a spot into a thin line. The line can then be scanned across a surface using mirrors or galvanometer scanners, enabling laser line scanning for 3D metrology, inspection, and machine vision with consistent line width for accurate measurements.
7. What role do cylindrical lenses play in optical spectroscopy and monochromators?
In spectroscopy, optical throughput and spectral resolution depend on beam shaping onto dispersive elements. Cylindrical lenses control beam width and height independently, aligning with slit geometry and efficiently illuminating diffraction gratings or prisms. This maximizes signal strength while maintaining wavelength separation.
8. How are cylindrical lenses used in microscopy?
Cylindrical lenses create line illumination for scanning microscopy and confocal-style systems, increasing imaging speed and light efficiency. They also correct axis-specific aberrations and shape excitation beams in fluorescence microscopy, improving uniformity and signal-to-noise ratios.
