A collimating lens is an instrument that converts light from each point in the aperture column into a parallel column of collimating light.
Lens type depends on aberration requirements, For low requirements, simple lenses, such as flat convex or double convex lenses, may be used and a larger relative aperture is allowed. High requirements, Achromatic lens will be use, the relative aperture is also appropriately reduced.
Collimator lens is one of the mainly products in Sunday. We have standard ones and also accept customer-made. Sunday has collimator lens with single aspheric, doublet lenses, triplet lenses.
Share:
Parameter
Specification:
| Shell Material | Aluminum or Copper |
| Lenses | aspheric lens, two lenses, three lenses (Glass), single apron, two aprons |
| Size | M6X0.5, M7X0.5, M9X0.5, M8X0.5, M12.7X0.5 |
| Wavelength | 405nm-450nm, 630-670nm |
| Focal length | 2mm, 4.05mm, 6mm, 7mm, 8mm, 10mm, 15mm, 20mm |
| Length | 7mm, 8mm, 10mm, 12mm |
We welcome customer-design!

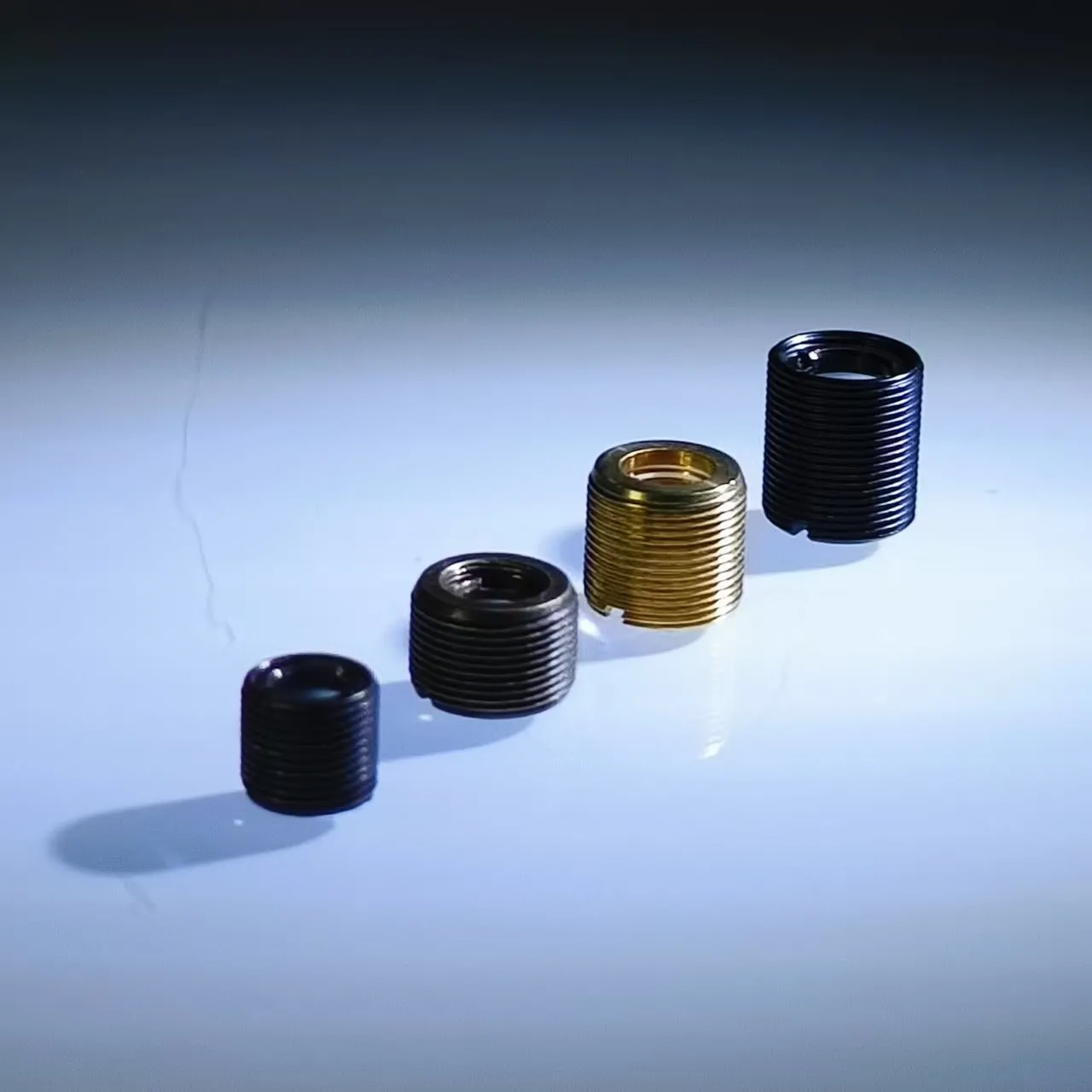

Collimator Lens EFL 2mm
Collimator Lens EFL2mm, made by optical glass aspheric lens. The length can be 5mm, 6.5mm, 8mm or customized. the Diameter can be customized M6 M7 M8 M9.
 | Mount Size: M9*P0.5*6.5mm Lens Material: D-ZK3 glass Design Wavelength: 650nm Focal Length: 2mm NA: 0.54 Working Distance: 0.7mm CA: 2.4mm Transmission>95% Coating: BBAR 400-700nm |
 | Mount Size: M7*P0.5*5mm Lens Material: D-ZK3 glass Design Wavelength: 650nm Focal Length: 2mm NA: 0.54 Working Distance: 0.7mm CA: 2.4mm Transmission>95% Coating: BBAR 400-700nm |
G2 lens Collimator Lens EFL4.02mm
Collimator Lens EFL4.05mm, made by optical glass aspheric lens.
The length can be 6.5mm, 8mm, 10mm, 14mm or customized. the Diameter can be customized. M9*0.5 M10*0.5
When you need other wavelength, please contact us freely.
 | Mount Size: M9*P0.5*8mm Lens Material: D-ZK3 Design Wavelength: 445nm Focal Length: 4.05mm NA: 0.6 Working Distance: 2.23mm CA: 5.3mm Transmission>95% Coating: BBAR 400-700n |
Collimator Lens EFL6mm
 | Mount Size: M9*P0.5*8mm Lens Material: D-ZK3 Design Wavelength: 530nm Focal Length: 6mm NA: 0.2 Working Distance: 4.71mm CA: 2.4mm Transmission>95% Coating: BBAR 400-700nm |
Collimator Lens EFL6.2mm
 | Mount Size: M9*P0.5*8mm Lens Material: D-ZK3 Design Wavelength: 633nm Focal Length: 6.20mm NA: 0.3 Working Distance: 3.59mm CA: 4.0mm Transmission>95% Coating: BBAR 400-700nm |
Collimator Lens EFL8mm
 | Mount Size: M8*P0.5*8mm or M9*0.5*10mm Lens Material: D-ZK3 Design Wavelength: 530nm Focal Length: 8mm NA: 0.25 Working Distance: 5.44mm CA: 0.25mm Transmission>95% Coating: BBAR 400-700nm |
Collimator Lens EFL10mm
 | Mount Size: M9*P0.5*8mm Lens Material: L-BAL42 Design Wavelength: 786.5nm Focal Length: 10mm NA: 0.17 Working Distance: 4.71mm CA: 5.2mm Transmission>95% Coating: AR 786.50nm, R<1% |
Triplet Collimator Lens EFL8-10mm
 | Design Wavelength: 405nm 450nm 650nm 850nm EFL: 8mm/9mm/10mm Working distance: 3.8-4mm NA: 0.25 Collimation Degree: >0.3 mrad CA: 5mm Transmission>95% Coating: 400-700nm or 700-1100nm |
