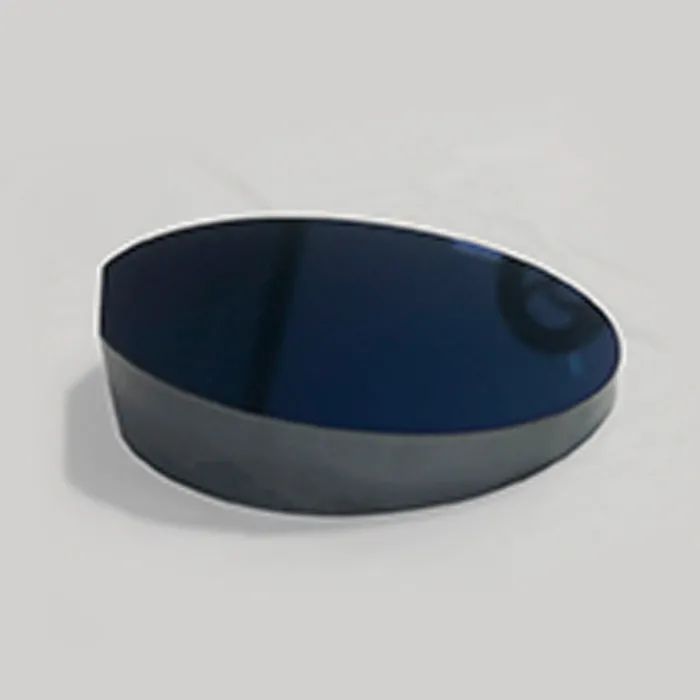

Silicon Has Good transmission at 1-7um. It is widely used for 3-5um infrared windows and lens.
Share:
Specifications
Refractive index range(20℃)
| Wavelength(nm) | Refractive index(n) | Wavelength(nm) | Refractive index(n) |
| 1357 | 3.4975 | 4000 | 3.4257 |
| 1367.3 | 3.4926 | 4258 | 3.4245 |
| 1395.1 | 3.4929 | 4500 | 3.4236 |
| 1529.5 | 3.4795 | 5000 | 3.4223 |
| 1660.6 | 3.4696 | 5500 | 3.4213 |
| 1709.2 | 3.4664 | 6000 | 3.4202 |
| 1813.2 | 3.4608 | 6500 | 3.4195 |
| 1970.2 | 3.4537 | 7000 | 3.4189 |
| 2152.6 | 3.4476 | 7500 | 3.4186 |
| 2325.4 | 3.443 | 8000 | 3.4184 |
| 2714.4 | 3.4358 | 8500 | 3.4182 |
| 3000 | 3.432 | 10000 | 3.4179 |
| 3303.3 | 3.4297 | 10500 | 3.4178 |
| 3500 | 3.4284 | 11040 | 3.4176 |
Manufacture Specifications
| Diameter | 3mm to 280mm |
| Diameter Tol. | +0.00/-0.05 |
| Surface Quality | 40-20 standard |
| Flatness | 1/10 lambda |
| Chamfer | 0.25mmx45degree |
| Angle tolerance | <1arcmin |
| Coating | Customer design |
