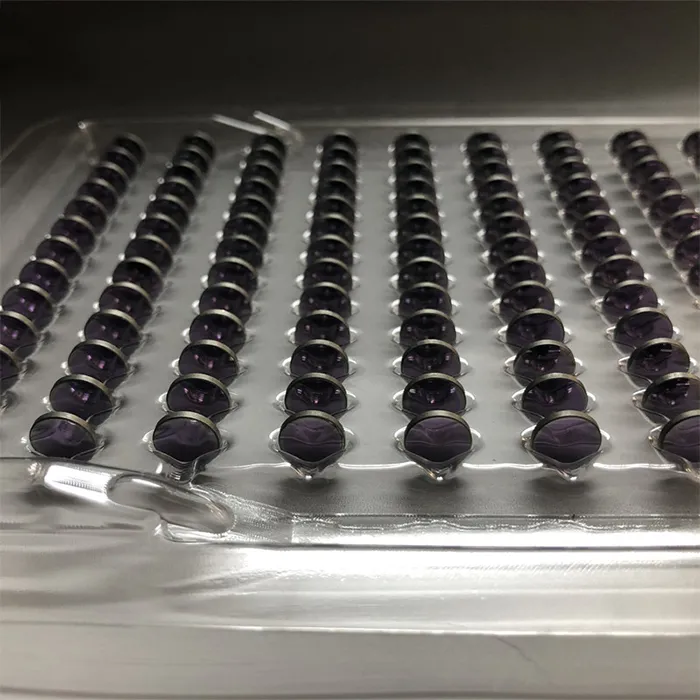

Ge has high refractive index, The transmission wavelength for Monocrystal Germanium is 2-12um, it is a common infrared crystal which is widely used for infrared image system and infrared spectrograph systems. Ge has a small absorbency at 10.6um. It is a good material for CO2 lens and windows.
Share:
Specifications
Optical Properties
| Transmission Wavelength | 2000nm—12000nm |
| Absorptivity (1/cm) | 1.3*10-3 @ 3800nm 3*10-2 @ 10600nm |
| Thermo-optical coeffecient, dn/dT (1/k) | 4.08*10-4 @10600nm |
| Electrical resistivity | 5-40 Ω.cm 1-5Ω.cm >50Ω.cm |
Refractive index range(20℃)
| Wavelength(nm) | Refractive index(n) | Wavelength(nm) | Refractive index(n) |
| 2200 | 4.0879 | 8000 | 4.0057 |
| 3000 | 4.0451 | 9000 | 4.0040 |
| 3800 | 4.0267 | 10600 | 4.0028 |
| 5000 | 4.0160 | 11000 | 4.0025 |
| 6000 | 4.0107 | 12000 | 4.0021 |
| 7000 | 4.0079 | 13000 | 4.0018 |
Manufacture Specifications
| Diameter | 5-270mm |
| Diameter Tol. | +/-0.1 |
| Surface Quality | 60-40 standard |
| Flatness | 1/4 lambda |
| Chamfer | 0.25mmx45degree |
| Focal Length Tol. | +/-1% |
| Coating | 2-14um |
